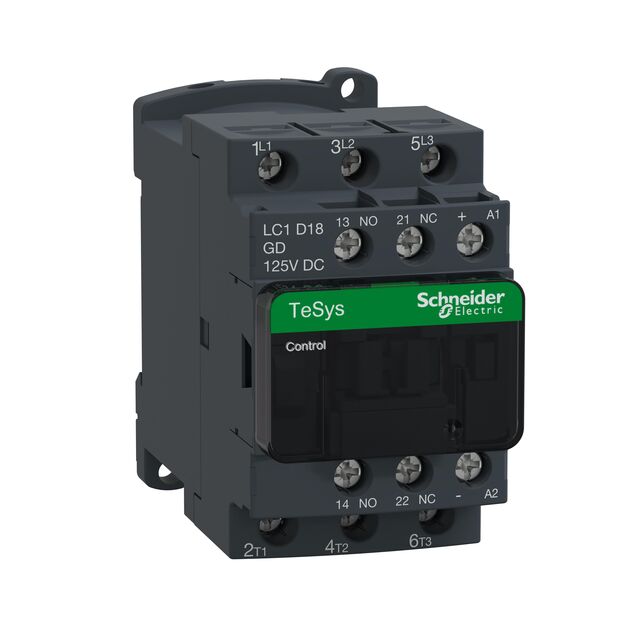

Specification	LC1D18GD

Coil Voltage	125 VDC
Contact Form	A, PST-NO, Form, 3
Contact Rating (Current)	18 A
Features	Suppressor, Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Must Operate Voltage	87.5 VDC
Must Release Voltage	12.5 VDC
Operate Time	72.45 ms
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Pin Count	3 pins
Release Time	24 ms
Switching Voltage AC (Max)	690 VAC
Switching Voltage DC (Max)	300 VDC
Termination Style	Screw Terminal
