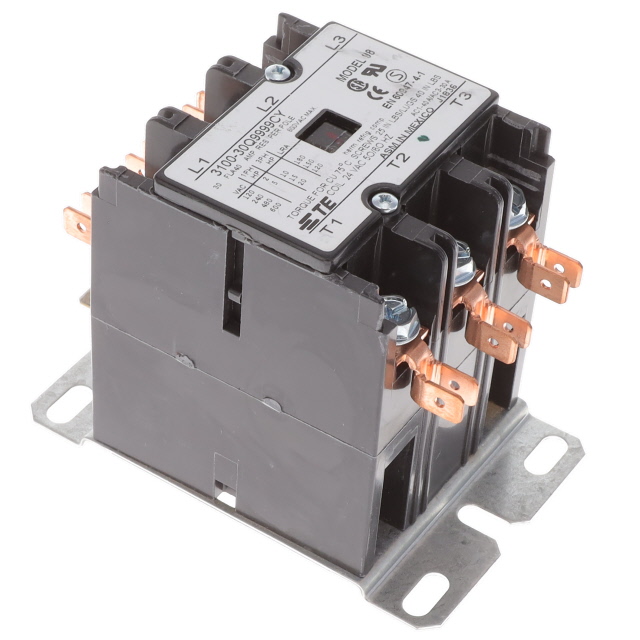

Specification	3100-30Q9999CY

Coil Power	5 W
Coil Resistance	7 Ohms
Coil Voltage	24 VDC
Contact Form	PST-NO, X, Form, 3, DM
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	30 A
Features	Insulation, Class B
Mounting Type	Chassis Mount
Must Operate Voltage	18 VDC
Must Release Voltage	6 VDC
Operating Temperature (Max)	65 °C
Operating Temperature (Min)	-40 °C
Pin Count	3 pins
Quick Connect Size (0.250")	0.25 in
Switching Voltage AC (Max)	600 VAC
Termination Style	Screw Terminal, Quick Connect

3100 Series

Part	Coil Power	Coil Resistance	Contact Material	Coil Voltage	Must Operate Voltage	Mounting Type	Contact Rating (Current)	Must Release Voltage	Features	Quick Connect Size (0.250")	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Switching Voltage AC (Max)	Pin Count	Contact Form	Coil Current
TE Connectivity AMP Connectors 3100Y30J17999CJ	14 W	45 Ohms	Silver Cadmium Oxide (AgCdO)	120 V	93 VAC	Chassis Mount	60 A	20 VAC	Class B Insulation	0.25 in	Quick Connect Screw Terminal	-40 °C	65 °C	600 VAC	3 pins	3 DM Form PST-NO X
TE Connectivity AMP Connectors 3100-30U10999LN	80 W	720 Ohms	Silver Cadmium Oxide (AgCdO)	240 V	177 VAC	Chassis Mount	40 A	40 VDC	Class B Insulation	0.25 in	Quick Connect Screw Terminal	-40 °C	65 °C	600 VAC	3 pins	3 DM Form PST-NO X	333.3 mA
TE Connectivity AMP Connectors 3100-15T1999	5.3 W	420 Ohms	Silver Cadmium Oxide (AgCdO)	120 V	88 V	Chassis Mount	25 A	20 VAC	Class B Insulation	0.25 in	Quick Connect Screw Terminal	-40 °C	65 °C	600 VAC		1 DM Form SPST-NO X
TE Connectivity AMP Connectors 3100-20Q5999C	7 VA	11 Ohms	Silver Cadmium Oxide (AgCdO)	24 VDC	18 VDC	Chassis Mount	26 A	6 VDC	Class B Insulation	0.25 in	Quick Connect Screw Terminal	-40 °C	65 °C	600 VAC		2 DM DPST-NO Form X
TE Connectivity AMP Connectors 3100-30T10999CG	5 W	180 Ohms	Silver Cadmium Oxide (AgCdO)	120 V	88 V	Chassis Mount	40 A	20 VAC	Class B Insulation	0.25 in	Quick Connect Screw Terminal	-40 °C	65 °C	600 VAC	3 pins	3 DM Form PST-NO X
TE Connectivity AMP Connectors 3100-40U10999AT	9.5 VA	520 Ohms	Silver Cadmium Oxide (AgCdO)	240 V	177 VAC	Chassis Mount	40 A	40 VDC	Class B Insulation	0.25 in	Quick Connect Screw Terminal	-40 °C	65 °C	600 VAC	4	4 DM Form PST-NO X
TE Connectivity AMP Connectors 3100-30Q10999CJ	5 W	7 Ohms	Silver Cadmium Oxide (AgCdO)	24 VDC	18 VDC	Chassis Mount	40 A	6 VDC	Class B Insulation	0.25 in	Quick Connect Screw Terminal	-40 °C	65 °C	600 VAC	3 pins	3 DM Form PST-NO X
TE Connectivity AMP Connectors 3100-30Q10999LN	82 W	7 Ohms	Silver Cadmium Oxide (AgCdO)	24 VDC	18 VDC	Chassis Mount	40 A	6 VDC	Class B Insulation	0.25 in	Quick Connect Screw Terminal	-40 °C	65 °C	600 VAC	3 pins	3 DM Form PST-NO X	3.4 A
TE Connectivity AMP Connectors 3100-30Q9999CG	5 W	7 Ohms	Silver Cadmium Oxide (AgCdO)	24 VDC	18 VDC	Chassis Mount	30 A	6 VDC	Class B Insulation	0.25 in	Quick Connect Screw Terminal	-40 °C	65 °C	600 VAC	3 pins	3 DM Form PST-NO X
TE Connectivity AMP Connectors 3100-20Q6999C	7 VA	11 Ohms	Silver Cadmium Oxide (AgCdO)	24 VDC	18 VDC	Chassis Mount	30 A	6 VDC	Class B Insulation	0.25 in	Quick Connect Screw Terminal	-40 °C	65 °C	600 VAC		2 DM DPST-NO Form X
