Description
General part information

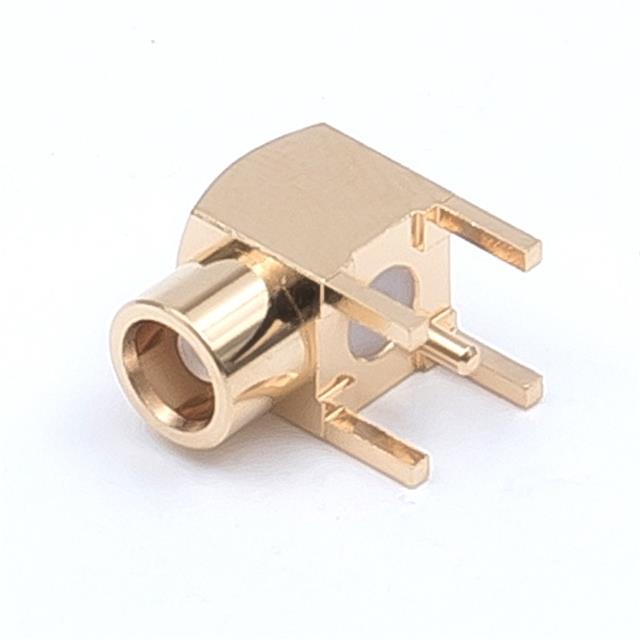

MCX-LR-PCB(50 OHM)
MCX Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | MCX-LR-PCB(50 OHM) |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | MCX |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Fastening Type | Snap-On |
| Frequency - Max | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Solder |
