Description

General part information

LT12525T0050J01

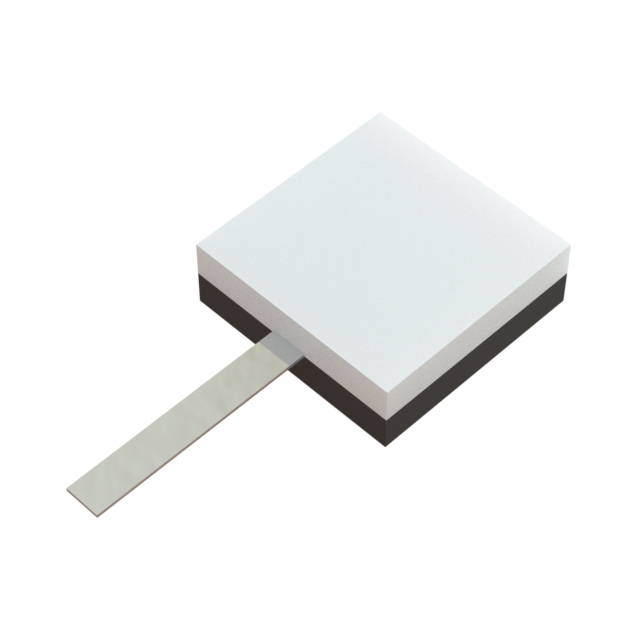

50 Ohms ±5% 100W Chip Resistor Flat Box, Terminator Thin Film

Technical Specifications

Parameters and characteristics for this part

SpecificationLT12525T0050J01
CompositionThin Film
Height - Seated (Max)0.045 in
Number of Terminations2
Operating Temperature (Max)150 °C
Operating Temperature (Min)-55 °C
Package / CaseTerminator, Flat Box
Power (Watts)100 W
Resistance50 Ohms
Size / Dimension Length0.245 in
Size / Dimension Width0.245 in
Temperature Coefficient150 ppm/¯C
Tolerance5 %
