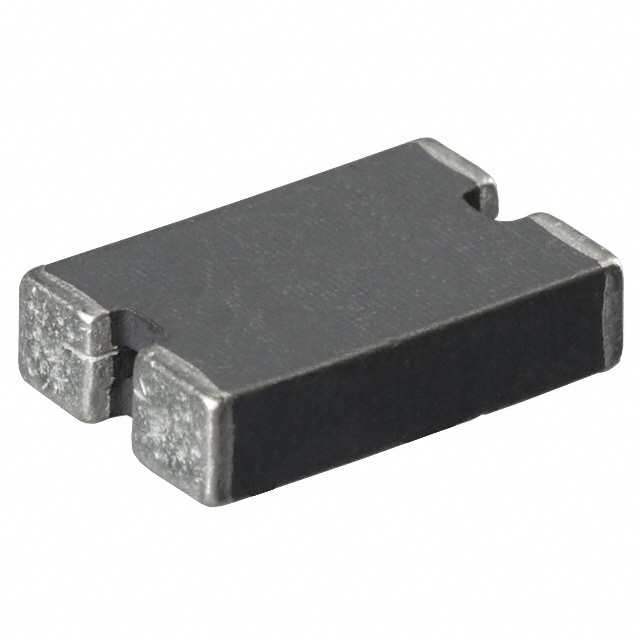

CM3322U610R-00
ObsoleteLaird Technologies EMI
CMC 7A 2LN 61 OHM SMD
CM3322U610R-00
ObsoleteLaird Technologies EMI
CMC 7A 2LN 61 OHM SMD
Description
General part information
CM3322U610R-00
2 Line Common Mode Choke Surface Mount 61 Ohms @ 100 MHz 7A DCR 9mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CM3322U610R-00 |
|---|---|
| Current Rating (Max) | 7 A |
| DC Resistance (DCR) (Max) | 9 mOhm |
| Height (Max) | 0.083 in |
| Impedance | 61 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.335 in |
| Size / Dimension Width | 0.22 in |
