TS1102-25DB
UnknownSILICON LABS

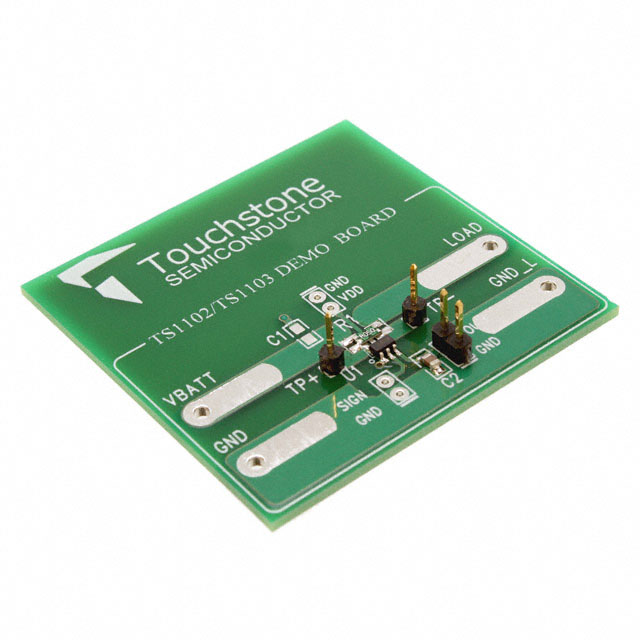

BOARD DEMO TS1102-25
TS1102-25DB
UnknownSILICON LABS
BOARD DEMO TS1102-25
Description
General part information
TS1102-25DB
TS1102-25 1 - Single Channels per IC Current Sense Amplifier Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | TS1102-25DB |
|---|---|
| -3db Bandwidth | 6 kHz |
| Amplifier Type | Current Sense |
| Board Type | Fully Populated |
| Channels per IC (Count) | 1 |
| Channels per IC (Single) | 1 |
| Channels per IC (Type) | Single |
| Contents | Board |
| Current - Supply (Main IC) | 6.8e-7 nA |
| Output Type | Single-Ended |
| Supplied Contents | Board(s) |
| Supply Configuration | Single, Dual |
| Utilized IC / Part | TS1102-25 |
| Voltage - Supply (Single) Maximum | 27 V |
| Voltage - Supply (Single) Minimum | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
