53245-1
ActiveTE Connectivity AMP Connectors
FORK / SPADE TONGUE TERMINAL, PLASTI-GRIP SERIES, 16 AWG, 14 AWG, 2 MM², M5, #10
53245-1
ActiveTE Connectivity AMP Connectors
FORK / SPADE TONGUE TERMINAL, PLASTI-GRIP SERIES, 16 AWG, 14 AWG, 2 MM², M5, #10
Description
General part information
53245-1

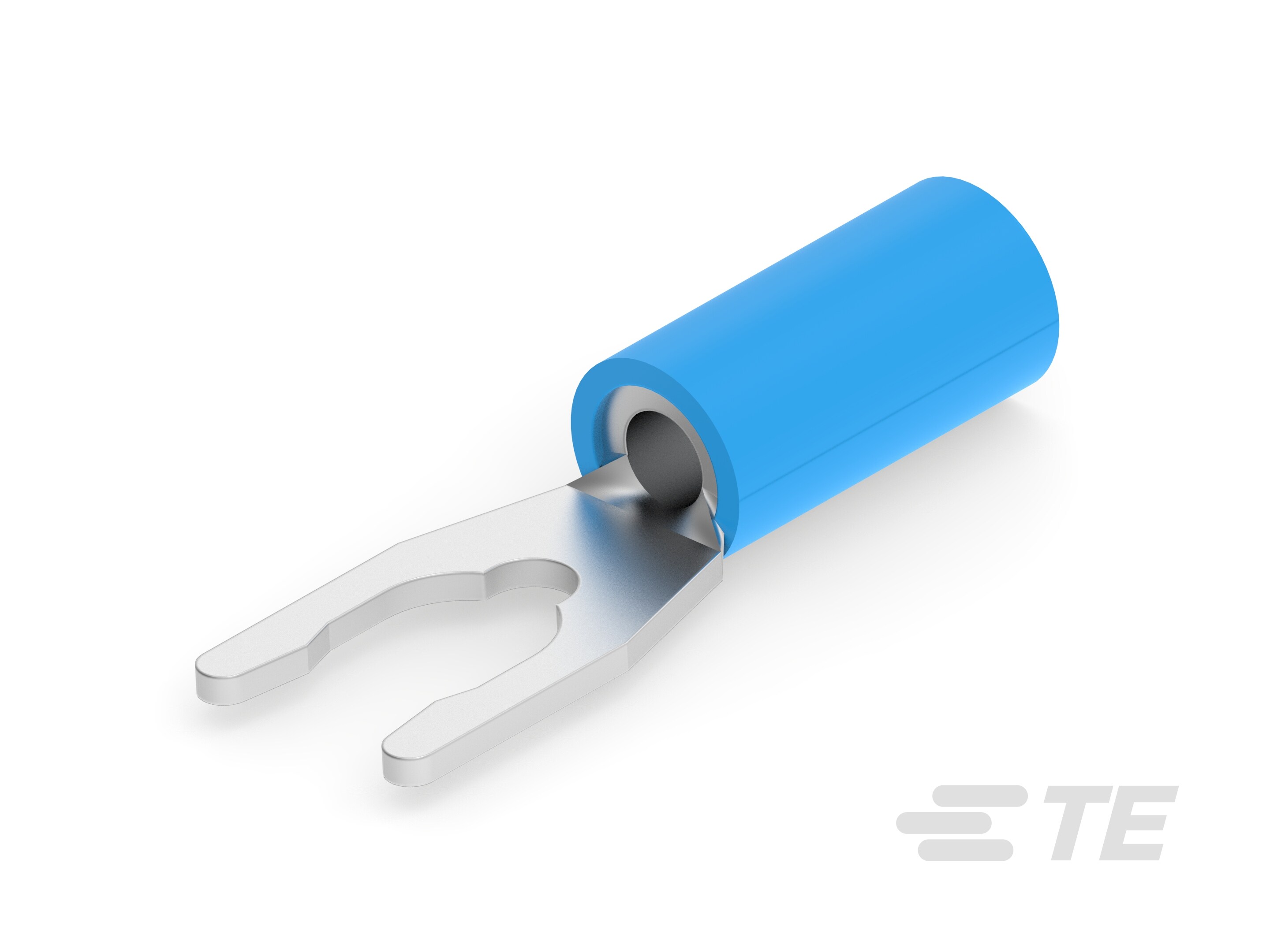

Spring Spade Terminal, 16 AWG, #10 Stud, 4.82 mm [.19 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated, PLASTI-GRIP
Technical Specifications
Parameters and characteristics for this part
| Specification | 53245-1 |
|---|---|
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Brass |
| Features | Serrated Termination |
| Insulation | Insulated |
| Length - Overall | 0.92 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Snap, Spring |
| Termination | Crimp |
| Width - Outer Edges | 0.294 in |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
