PD30CTBR20BPM5IO
ActiveCarlo Gavazzi Inc.
PHOTO BGS RD 200MM PL TOP IO-LIN
PD30CTBR20BPM5IO
ActiveCarlo Gavazzi Inc.
PHOTO BGS RD 200MM PL TOP IO-LIN
Description
General part information
PD30CTBR20BPM5IO

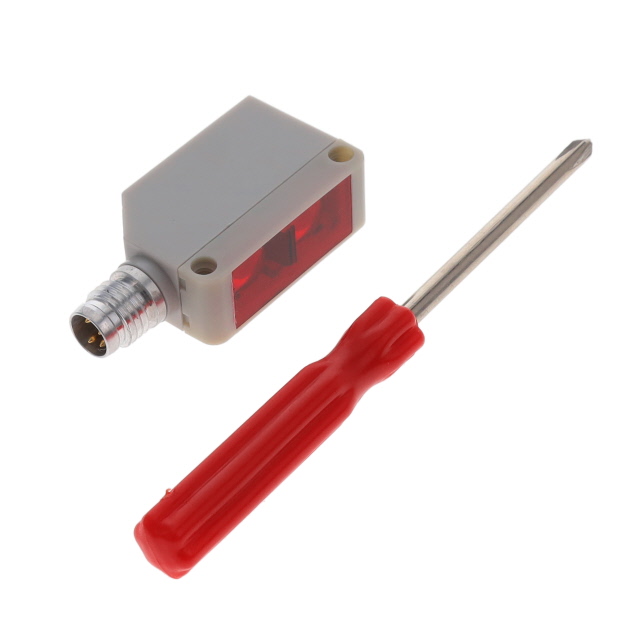

Background Suppression Optical Sensor 7.874" (200mm) Push-Pull, NPN/PNP
Technical Specifications
Parameters and characteristics for this part
| Specification | PD30CTBR20BPM5IO |
|---|---|
| Adjustment Type | Adjustable, Potentiometer |
| Connection Method | M8, Connector |
| Ingress Protection | IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 620 nm |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | PNP, NPN, Push-Pull |
| Response Time | 1 ms |
| Sensing Distance | 7.874 " |
| Sensing Method | Background Suppression |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
