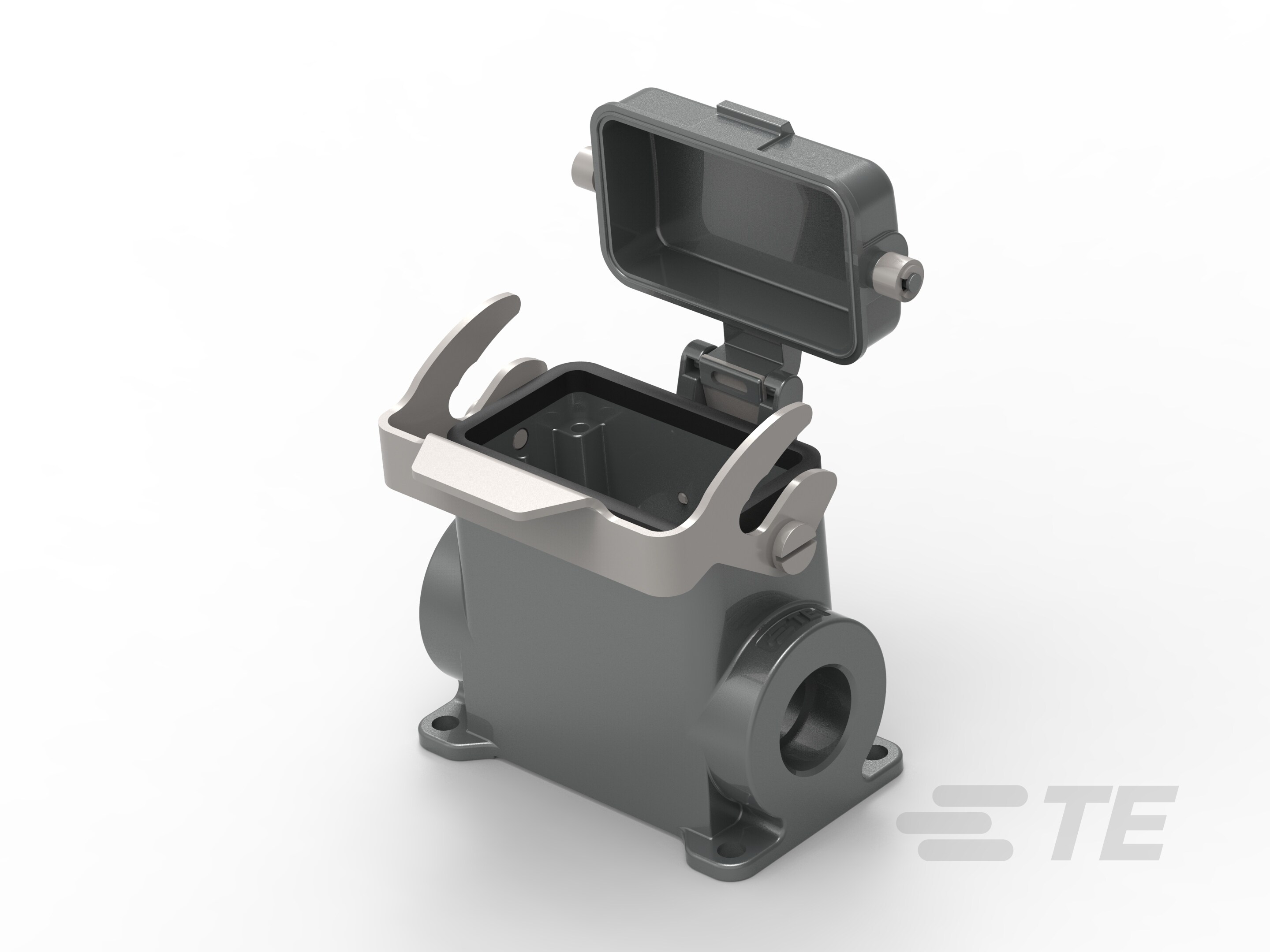

Specification	T1660103432-000

Connector Type	Base - Box Mount
Features	Feed Through, Cover
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Size	H10B
Size / Dimension Height	2.976 in
Size / Dimension Length	3.228 in
Size / Dimension Width	2.244 in
Style	Side Entry
Thread Size	M32
