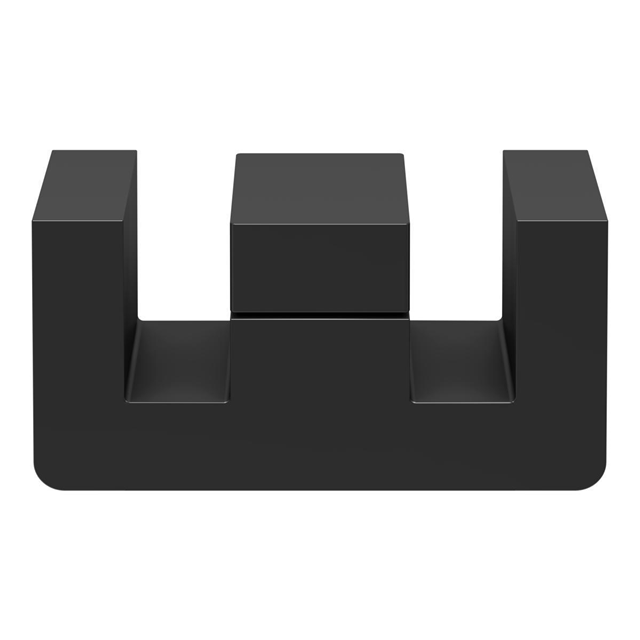

Specification	B66387Q0250K187

Core Factor (ΣI/A) mm⁻¹	0.27 mm⁻¹
Core Type	E
Effective Area (Ae)	535 mm²
Effective Length (le)	147 mm
Effective Magnetic Volume (Ve)	78600 mm³
Finish	Uncoated
Gap	Distributed Gapped
Height	1.291 in
Inductance Factor (Al)	250 nH
Initial Permeability (µi)	2200
Length	2.559 in
Material	N87
Minimum Core Cross Section (Amin) (mm²)	529 mm²
Package Height	27 mm
Package Length	65 mm
Package Name	E
Package Width	32 mm
Tolerance	10 %
Width	1.079 in
