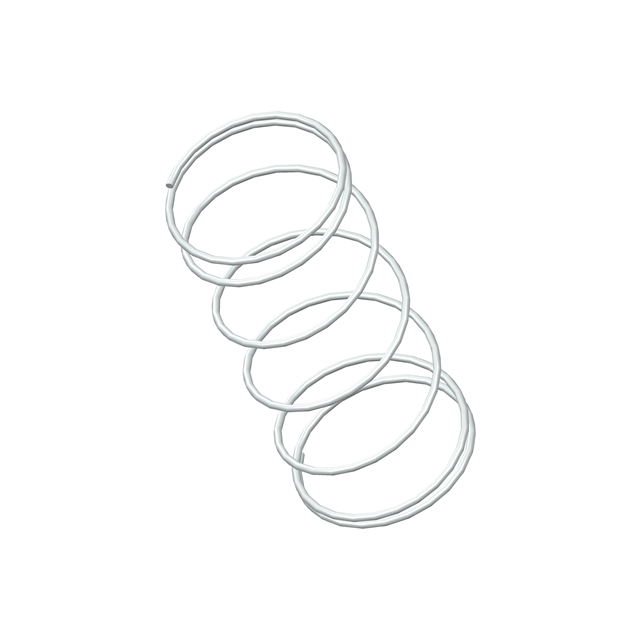

S-1188CS
ActiveCentury Spring Corp
COMP O=1.640,L= 3.75,W= .067
S-1188CS
ActiveCentury Spring Corp
COMP O=1.640,L= 3.75,W= .067
Description
General part information
S-1188CS
COMP O=1.640,L= 3.75,W= .067
Technical Specifications
Parameters and characteristics for this part
| Specification | S-1188CS |
|---|---|
| Diameter - Inside | 1.506 in |
| Diameter - Outside | 1.64 in |
| End Style | Closed |
| Finish | None |
| Free Length | 3.75 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 1.3 lbs/in |
| Type | Compression |
| Wire Diameter | 0.067 in |
