Description
General part information

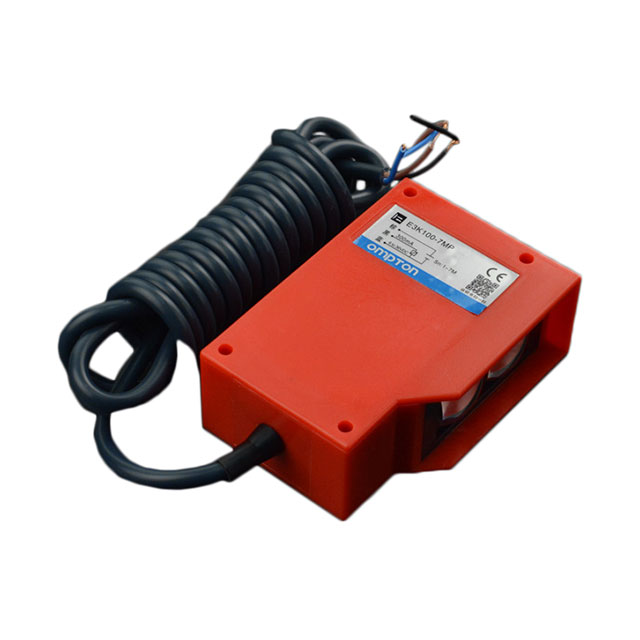

SEN0455
Reflective, Diffuse Optical Sensor 22.97' (7m) Switch
Technical Specifications
Parameters and characteristics for this part
| Specification | SEN0455 |
|---|---|
| Adjustment Type | Adjustable |
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IP54, IP67 |
| Light Source | Infrared |
| Output Configuration | Switch |
| Response Time | 2.5 ms |
| Sensing Distance | 22.97 ' |
| Sensing Method | Reflective, Diffuse |
| Voltage - Supply (Maximum) | 36 VDC |
| Voltage - Supply (Minimum) | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
