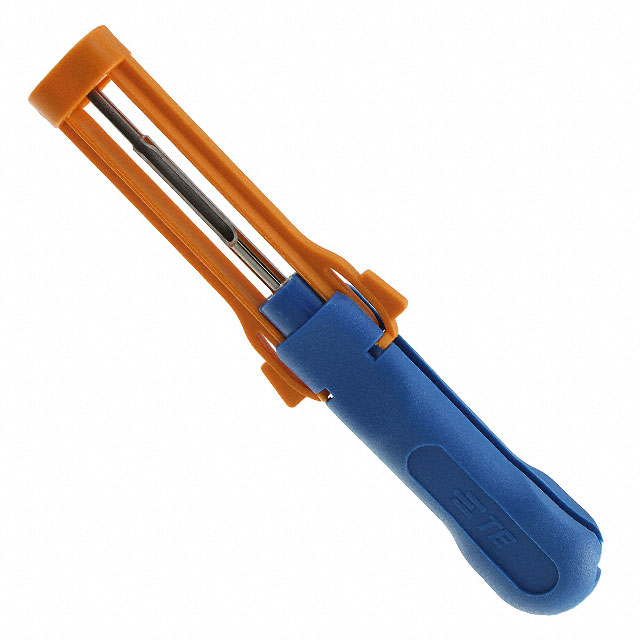

Specification	1579007-9

For Use With/Related Products	D-Sub Contacts, 20-24 AWG
Related Product Maximum Gauge	24 AWG
Related Product Minimum Gauge	20 AWG
Related Product Type	D-Sub Contacts
Tool Type	Extraction Tool

Round Connector System Series

Part	Features	Type	Contact Termination	Contact Size	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Termination Finish	Contact Material	Contact Type	Contact Finish	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Contact Finish Thickness	Tool Type	Connector Type	Fastening Type	Number of Positions	Insulation Material	Color	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Number of Rows
TE Connectivity AMP Connectors 1703013-4
TE Connectivity AMP Connectors 929972-1	Insulation Support	Power Stamped	Crimp	2.5 mm	2.5 mm²	4 mm²	Tin	Copper Alloy	Socket	Tin
TE Connectivity AMP Connectors 929990-1	Insulation Support	Power Stamped	Crimp	1.5 mm	1 mm²	2.5 mm²	Tin	Copper Alloy	Socket	Tin	13 AWG	17 AWG	39.4 Ąin
TE Connectivity AMP Connectors 929975-8	Insulation Support	Power Stamped	Crimp	2.5 mm	1 mm²	2.5 mm²	Tin	Copper Alloy	Socket	Gold	13 AWG	17 AWG	31.5 µin
TE Connectivity AMP Connectors 3-1579007-7														Extraction Tool
TE Connectivity AMP Connectors 929968-1	Insulation Support	Power Stamped	Crimp	2.5 mm	1 mm²	2.5 mm²	Tin	Copper Alloy	Pin	Tin	14 AWG	16 AWG	39.4 Ąin
TE Connectivity AMP Connectors 953318-1			Crimp						Female Socket						Plug	Push-Pull	1	Polybutylene Terephthalate (PBT)	Black	100 °C	-40 °C	Free Hanging (In-Line)	1
TE Connectivity AMP Connectors 953631-1
TE Connectivity AMP Connectors 962956-1	Insulation Support	Power Stamped	Crimp	4 mm	2.5 mm²	4 mm²	Tin	Copper Alloy	Socket	Tin	11 AWG	13 AWG	39.4 Ąin
TE Connectivity AMP Connectors 929986-1	Insulation Support	Power Stamped	Crimp	1.5 mm	0.5 mm²	1 mm²	Tin	Copper Alloy	Socket	Tin	17 AWG	20 AWG	39.4 Ąin
