Description
General part information

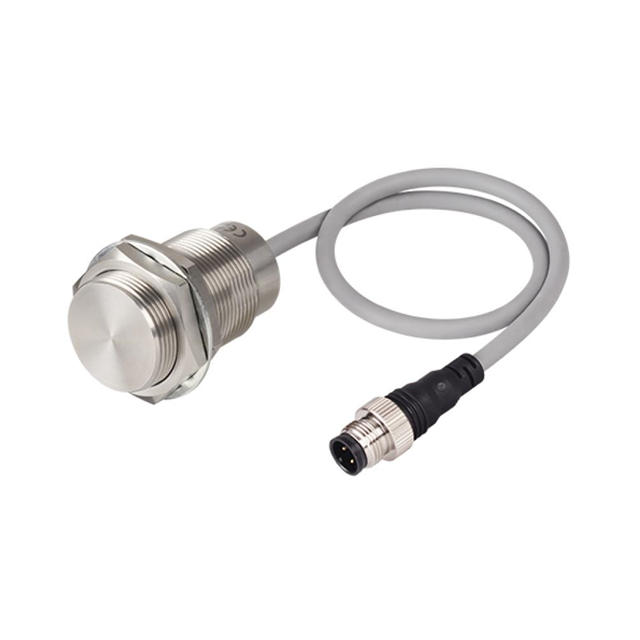

PRFDWT30-12DO-IV
SENSOR PROX INDUCTIVE 12MM CYL
Technical Specifications
Parameters and characteristics for this part
| Specification | PRFDWT30-12DO-IV |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NO, 2-Wire |
| Package / Case | Cylinder, Threaded - M30 |
| Response Frequency | 50 Hz |
| Sensing Distance | 0.472 " |
| Sensor Type | Inductive |
| Shielding | Shielded |
| Termination Style | Cable with Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
