RH2B-UD-DC12V

Active

IDEC Corporation

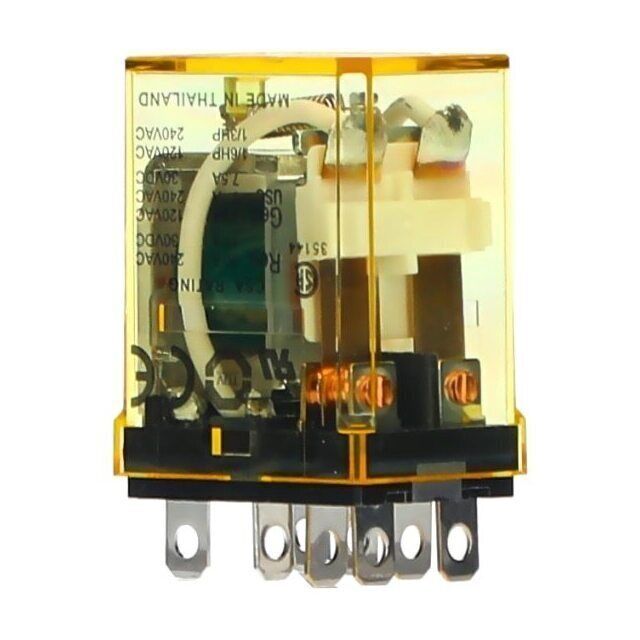

RELAY PLUG-IN DPDT 10A 12VDC ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RH2B-UD-DC12V

Active

IDEC Corporation

RELAY PLUG-IN DPDT 10A 12VDC ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.63
Newark	Each	1	$ 17.11
		5	$ 16.17
		10	$ 14.21
		25	$ 12.76
		50	$ 11.97
		100	$ 11.31
		250	$ 10.66

Description

General part information

RH2B-U Series

General Purpose Relay DPDT (2 Form C) 12VDC Coil Socketable

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RH2B-UD-DC12V	RH2B-U Series

Approval Agency	CSA, TUV, cURus, CE	CSA, TUV, cURus, CE
Coil Current	75 mA	4 - 645.2 mA
Coil Resistance	160 Ohms	1.138 - 2560 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	6 - 240 VDC
Coil Voltage	-	100 - 220 VAC
Coil Voltage	-	110 - 240 VAC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	10 A	10 A
Features	Diode	Test Button, Lighted Indicator, Diode
Load - Max Switching	300 W, 2400 VA	280 - 2400 W
Mounting Type	Socketable	Socketable, Chassis Mount
Must Operate Voltage	9.6 VDC	4.8 - 192 VDC
Must Release Voltage	1.2 VDC	0.6 - 72 VDC
Operate Time	20 ms	20 ms
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Relay Type	General Purpose	General Purpose
Release Time	20 ms	20 - 25 ms
Switching Voltage	30 VDC, 240 VAC	28 - 240 VDC
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)	Plug In, Quick Connect - 0.187" (4.7mm), Quick Connect - 0.187" (4.7mm)

RH2B-U Series

POWER RELAY, DPDT, 12 VDC, 10 A, RH SERIES, SOCKET, NON LATCHING

Part	Contact Form	Release Time	Load - Max Switching	Features	Contact Material	Termination Style	Must Release Voltage	Coil Current	Switching Voltage	Coil Resistance	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Relay Type	Must Operate Voltage	Mounting Type	Approval Agency	Coil Type	Operate Time
IDEC Corporation RH2B-ULCDC12V	DPDT (2 Form C)	20 ms	300 W, 2400 VA	Lighted Indicator, Test Button	Silver Cadmium Oxide (AgCdO)	Plug In, Quick Connect - 0.187" (4.7mm)	1.2 VDC	75 mA	30 VDC, 240 VAC	40 Ohms	10 A	70 °C	-25 °C	12 VDC	General Purpose	9.6 VDC	Socketable	CE, CSA, cURus, TUV	Non Latching	20 ms
IDEC Corporation RH2B-UAC48V	DPDT (2 Form C)	20 ms	300 W, 2400 VA		Silver Cadmium Oxide (AgCdO)	Plug In, Quick Connect - 0.187" (4.7mm)	14.4 VAC		30 VDC, 240 VAC		10 A	70 °C	-25 °C	48 VAC/DC	General Purpose	38.4 VAC	Socketable	CE, CSA, cURus, TUV	Non Latching	20 ms
IDEC Corporation RH2B-UDC48V	DPDT (2 Form C)	25 ms	280 W, 1200 VA		Silver Cadmium Oxide (AgCdO)	Plug In, Quick Connect - 0.187" (4.7mm)	4.8 VDC	18.5 mA	28 VDC, 120 VAC	2.6 kOhms	10 A	70 °C	-25 °C	48 VDC	General Purpose	38.4 VDC	Socketable	CE, CSA, cURus, TUV	Non Latching	20 ms
IDEC Corporation RH2B-UTDC6V	DPDT (2 Form C)	20 ms	300 W, 2400 VA		Silver Cadmium Oxide (AgCdO)	Quick Connect - 0.187" (4.7mm)	0.6 VDC	150 mA	30 VDC, 240 VAC	40 Ohms	10 A	70 °C	-25 °C		General Purpose	4.8 VDC	Chassis Mount	CE, CSA, cURus, TUV	Non Latching	20 ms
IDEC Corporation RH2B-UD-DC48V	DPDT (2 Form C)	20 ms	300 W, 2400 VA	Diode	Silver Cadmium Oxide (AgCdO)	Plug In, Quick Connect - 0.187" (4.7mm)	4.8 VDC	18.8 mA	30 VDC, 240 VAC	2560 Ohms	10 A	70 °C	-25 °C	48 VDC	General Purpose	38.4 VDC	Socketable	CE, CSA, cURus, TUV	Non Latching	20 ms
IDEC Corporation RH2B-UDC12V	DPDT (2 Form C)	20 ms	300 W, 2400 VA		Silver Cadmium Oxide (AgCdO)	Plug In, Quick Connect - 0.187" (4.7mm)	1.2 VDC	75 mA	30 VDC, 240 VAC	40 Ohms	10 A	70 °C	-25 °C	12 VDC	General Purpose	9.6 VDC	Socketable	CE, CSA, cURus, TUV	Non Latching	20 ms
IDEC Corporation RH2B-UCDC125V	DPDT (2 Form C)	20 ms	300 W, 2400 VA	Test Button	Silver Cadmium Oxide (AgCdO)	Plug In, Quick Connect - 0.187" (4.7mm)	12.5 VDC	7.2 mA	30 VDC, 240 VAC	17.361 kOhms	10 A	70 °C	-25 °C	125 VDC	General Purpose	100 VDC	Socketable	CE, CSA, cURus, TUV	Non Latching	20 ms
IDEC Corporation RH2B-UTAC110-120V	DPDT (2 Form C)	20 ms	300 W, 2400 VA		Silver Cadmium Oxide (AgCdO)	Quick Connect - 0.187" (4.7mm)	36 VAC	9.2 mA	30 VDC, 240 VAC	13.1 kOhms	10 A	70 °C	-25 °C	120 VAC	General Purpose	96 VAC	Chassis Mount	CE, CSA, cURus, TUV	Non Latching	20 ms
IDEC Corporation RH2B-UD-DC12V	DPDT (2 Form C)	20 ms	300 W, 2400 VA	Diode	Silver Cadmium Oxide (AgCdO)	Plug In, Quick Connect - 0.187" (4.7mm)	1.2 VDC	75 mA	30 VDC, 240 VAC	160 Ohms	10 A	70 °C	-25 °C	12 VDC	General Purpose	9.6 VDC	Socketable	CE, CSA, cURus, TUV	Non Latching	20 ms
IDEC Corporation RH2B-UTAC220-240V	DPDT (2 Form C)	20 ms	300 W, 2400 VA		Silver Cadmium Oxide (AgCdO)	Quick Connect - 0.187" (4.7mm)	72 VAC/DC	4.6 mA	30 VDC, 240 VAC	18.8 kOhms	10 A	70 °C	-25 °C	240 VAC	General Purpose	192 VAC	Chassis Mount	CE, CSA, cURus, TUV	Non Latching	20 ms
