Description
General part information

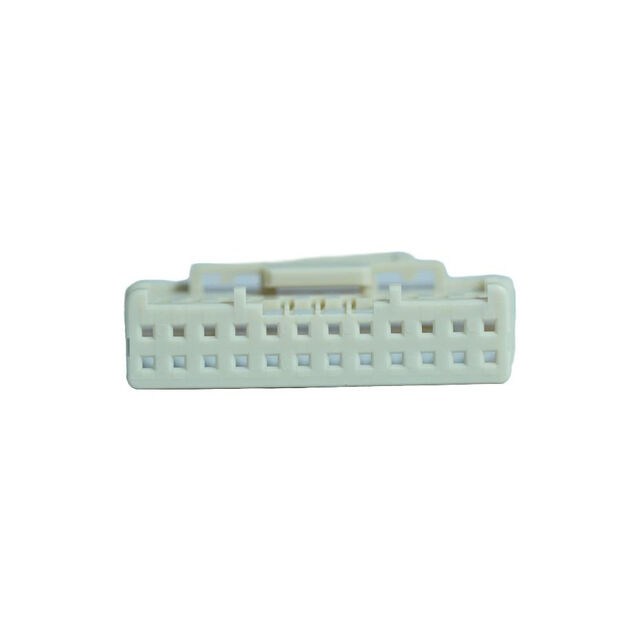

SJW2K-24HG
24 Rectangular Connectors - Housings Receptacle White 0.079" (2.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | SJW2K-24HG |
|---|---|
| Color | White |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 24 pos |
| Number of Rows | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Pitch | 0.079 in |
