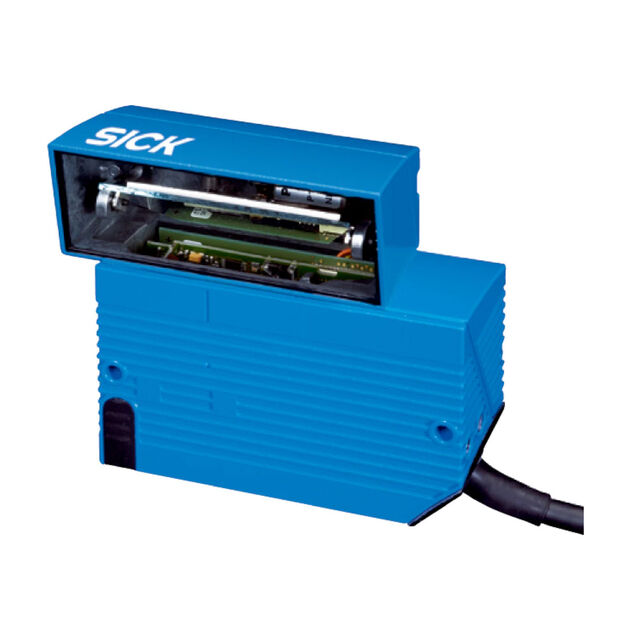

Specification	1042124

Features	Software Included
Image Type	Color
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Installation Distance (Max)	1.6 m
Installation Distance (Min)	125 mm, 140 mm
Light Source	Integrated (Red)
Mounting Type	Chassis Mount
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	0 °C
Termination Style	Cable with Connector
Type	Bar Code Reader
Visual Field (Max)	Lens Required
Visual Field (Min)	Lens Required
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	18 VAC
