AI-4429-P-C12-R
UnknownPUI Audio, Inc.

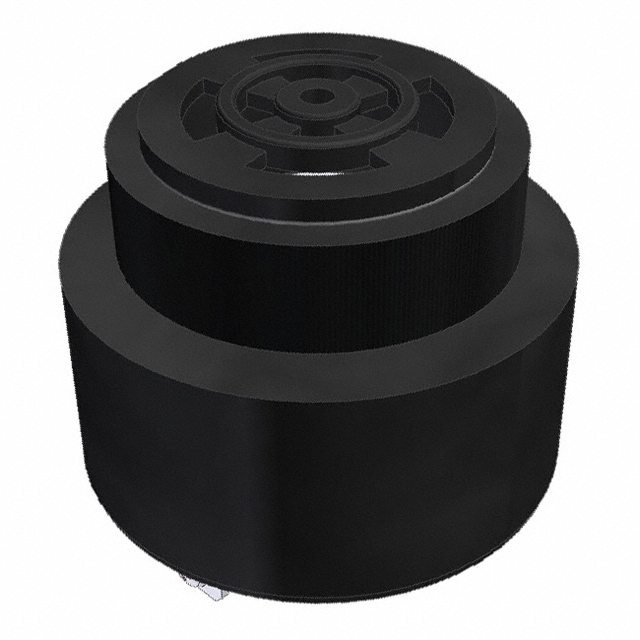

BUZZER PIEZO 12V 43.5MM PNL MNT
AI-4429-P-C12-R
UnknownPUI Audio, Inc.
BUZZER PIEZO 12V 43.5MM PNL MNT
Description
General part information
AI-4429-P-C12-R
Buzzers Indicator, Internally Driven Piezo 12 V 30mA 2.9kHz 105dB @ 12V, 10cm Panel Mount Screw Terminal, Quick Connect Tab - 0.256" (6.50mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | AI-4429-P-C12-R |
|---|---|
| Current - Supply | 30 mA |
| Driver Circuitry | Indicator, Internally Driven |
| Frequency | 2.9 kHz |
| Height - Seated (Max) | 1.339 in |
| Input Type | DC |
| Mounting Type | Panel Mount |
| Operating Mode | Single Tone |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -25 °C |
| Port Location | Top |
| Size / Dimension Diameter | 1.713 in |
| Sound Pressure Level (SPL) | 105 dB |
| Technology | Piezo |
| Termination | Quick Connect Tab - (6.50mm), Quick Connect Tab, Screw Terminal |
| Termination Probe Tip OD | 0.256 in |
| Voltage - Rated | 12 VAC |
| Voltage Range (Max) | 16 V |
| Voltage Range (Min) | 1 V |
