XS608B1NAM12

XS608B1PAM12

Active
SCHNEIDER ELECTRIC

INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M8, 2.5 MM, PNP, 12 V TO 48 V, CONNECTOR

Find alt
XS608B1NAM12

XS608B1PAM12

Active
SCHNEIDER ELECTRIC

INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M8, 2.5 MM, PNP, 12 V TO 48 V, CONNECTOR

Find alt

Description

General part information

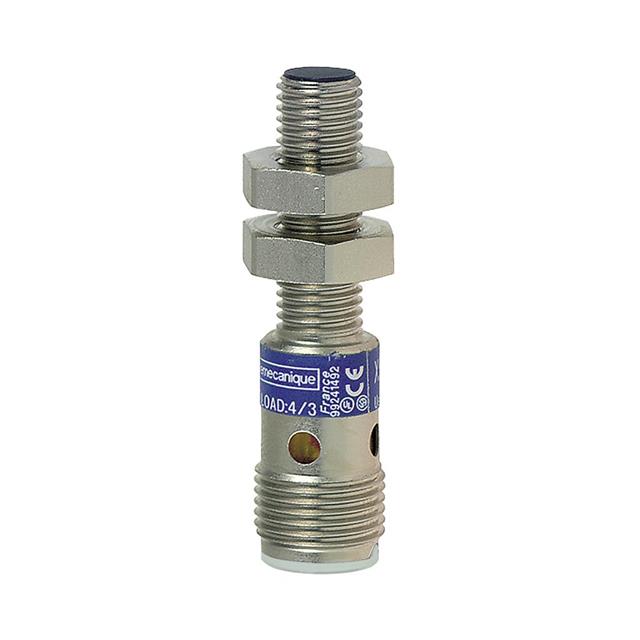

XS608B1PAM12

The XS608B1PAM12 is a flush mountable general purpose Inductive Proximity Sensor offers discrete output signal, DC PNP-NO output, male connector M12 4-pin electrical connection and frontal detection face. It is made of stainless steel fixed body, PPS front and stainless steel 303 enclosure.

Technical Specifications

Parameters and characteristics for this part

SpecificationXS608B1PAM12
IndicatorLED
Ingress ProtectionIP67
Material - BodyStainless Steel
Operating Temperature (Max)70 °C
Operating Temperature (Min)-25 °C
Output TypePNP-NO, 3-Wire
Package / CaseCylinder, Threaded - M8
Sensing Distance0.098 "
Sensor TypeInductive
ShieldingUnshielded
Termination StyleConnector
Voltage - Supply (Maximum)48 VDC
Voltage - Supply (Minimum)12 VDC
