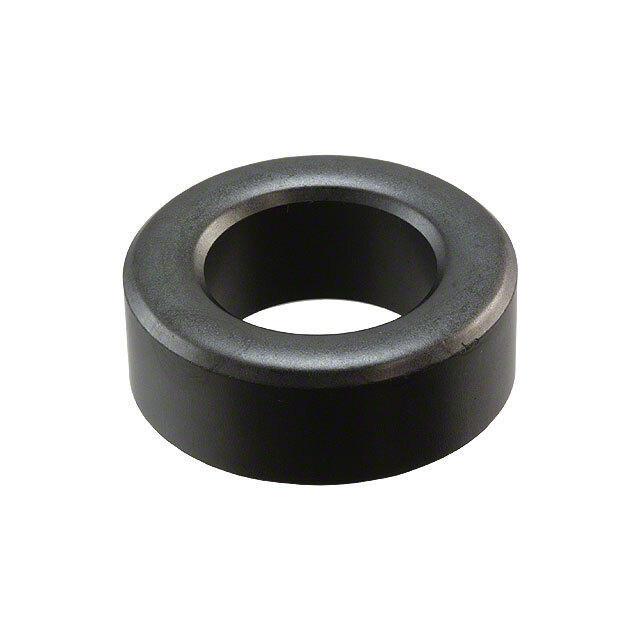

Specification	B64290A0045X830

Core Factor (ΣI/A) mm⁻¹	1.95 mm⁻¹
Core Type	Toroid
Diameter	0.63 in
Effective Area (Ae)	19.73 mm²
Effective Length (le)	38.52 mm
Effective Magnetic Volume (Ve)	760 mm³
Finish	Uncoated
Gap	Ungapped
Height	0.248 in
Inductance Factor (Al)	2.77 µH
Initial Permeability (µi)	4300
Material	N30
Package Height	6.3 mm
Package Length	16 mm
Package Name	R
Package Width	9.6 mm
Tolerance	25 %
