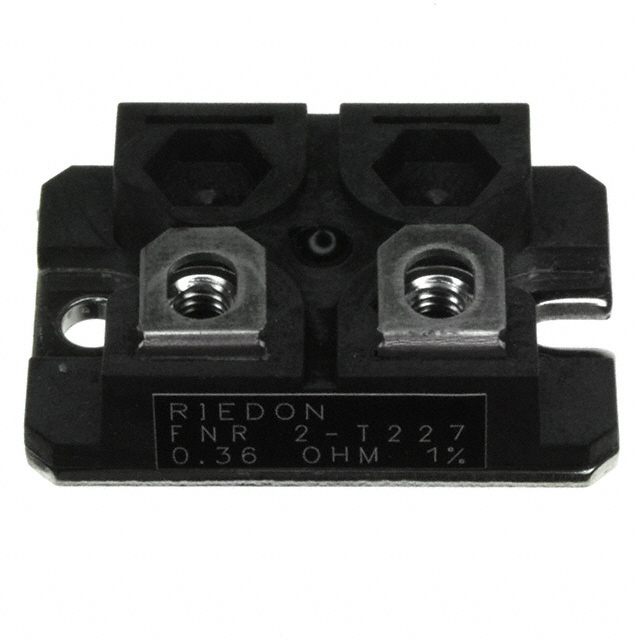

FNR2E-0R36F1
ActiveBourns Inc.
RES CHAS MNT 0.36 OHM 1% 80W
FNR2E-0R36F1
ActiveBourns Inc.
RES CHAS MNT 0.36 OHM 1% 80W
Description
General part information
FNR2E-0R36F1
360 mOhms ±1% 80W Metal Foil Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | FNR2E-0R36F1 |
|---|---|
| Coating | Epoxy Coated |
| Composition | Metal Foil |
| Height - Seated (Max) | 0.476 in |
| Housing Type | Epoxy Coated |
| Lead Style | M4 Threaded |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | SOT-227-2 |
| Power (Watts) | 80 W |
| Resistance | 360 mOhms |
| Size / Dimension Length | 1.496 in |
| Size / Dimension Width | 1.024 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 1 % |
