Description
General part information

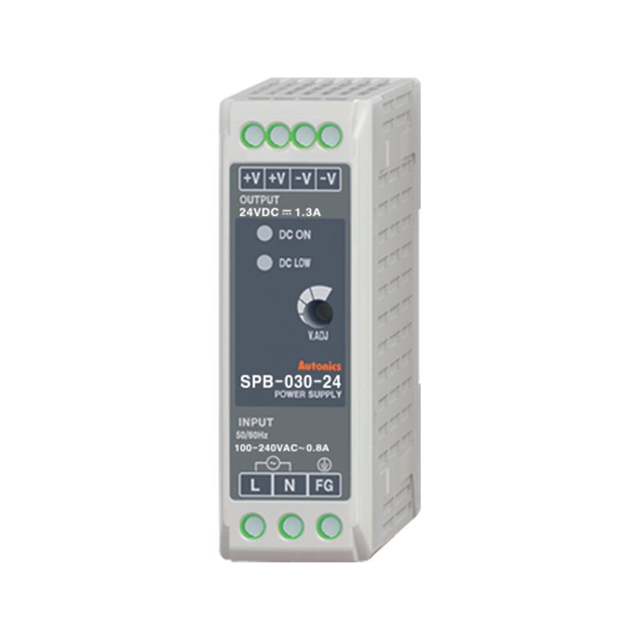

SPB-030-24
AC/DC DIN RAIL SUPPLY 24V 31W
Technical Specifications
Parameters and characteristics for this part
| Specification | SPB-030-24 |
|---|---|
| AC Voltage - Input (Max) (Range 1) | 240 VAC |
| AC Voltage - Input (Max) (Range 2) | 264 VAC |
| AC Voltage - Input (Min) (Range 1) | 100 VAC |
| AC Voltage - Input (Min) (Range 2) | 85 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | EAC, CE, cULus |
| Current - Output (Max) | 1.3 A |
| Efficiency | 84 % |
| Features | IP20, Adjustable Output, Universal Input |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Power (Watts) | 31 W |
| Size / Dimension Height | 4.21 in |
| Size / Dimension Length | 3.54 in |
| Size / Dimension Width | 1.18 in |
| Standard Number | 60950-1 |
| Voltage - Output 1 | 24 V |
