Description
General part information

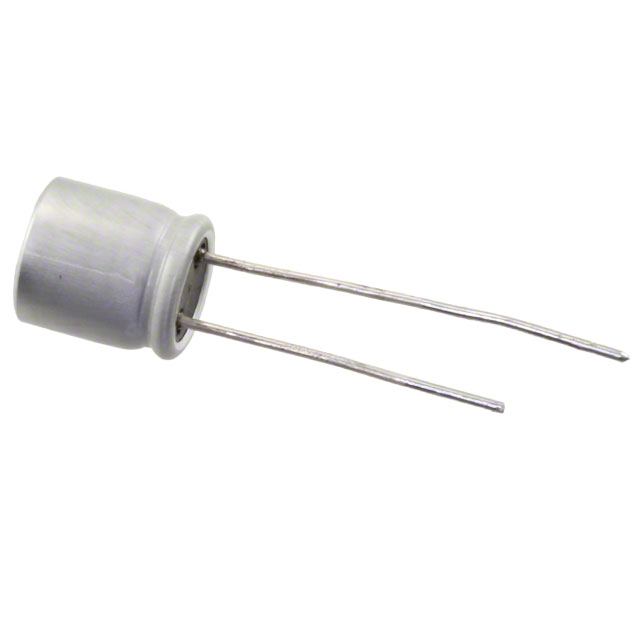

PLS0E821MCO6
820 µF 2.5 V Aluminum - Polymer Capacitors Radial, Can 7mOhm 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | PLS0E821MCO6 |
|---|---|
| Applications | General Purpose |
| Capacitance | 820 µF |
| ESR (Equivalent Series Resistance) | 7 mOhm |
| Height - Seated (Max) | 0.354 in |
| Lead Spacing | 0.138 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Ripple Current | 5.2 A |
| Size / Dimension Diameter | 0.315 in |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 2.5 V |
