Description
General part information

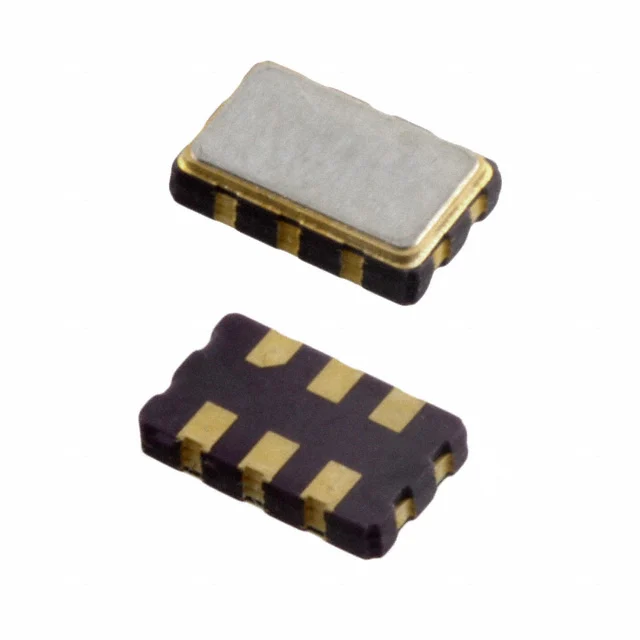

VG-4231CB 40.0000M-JGCZ3
XTAL OSC VCXO 40.0000MHZ CMOS
Technical Specifications
Parameters and characteristics for this part
| Specification | VG-4231CB 40.0000M-JGCZ3 |
|---|---|
| Absolute Pull Range (Maximum) | 50 ppm |
| Absolute Pull Range (Minimum) | -50 ppm |
| Base Resonator | Crystal |
| Current - Supply (Max) | 10 mA |
| Frequency | 40 MHz |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.055 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output | CMOS |
| Package / Case | No Lead, 6-SMD |
| Package Length | 5 mm |
| Package Name | 6-SMD |
| Package Width | 3.2 mm |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Type | VCXO |
| Voltage - Supply | 3.3 V |
