752243220FPTR7
ActiveCTS Resistor Products
BUSSED STD
752243220FPTR7
ActiveCTS Resistor Products
BUSSED STD
Description
General part information

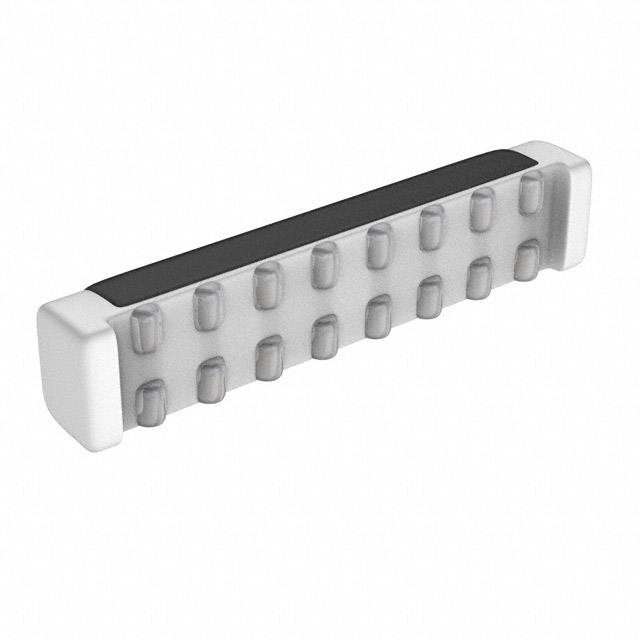

752243220FPTR7
22 Ohm ±1% 160mW Power Per Element Isolated 12 Resistor Network/Array ±200ppm/°C 24-DRT
Technical Specifications
Parameters and characteristics for this part
| Specification | 752243220FPTR7 |
|---|---|
| Circuit Type | Isolated |
| Height - Seated (Max) | 0.1 in |
| Mounting Type | Surface Mount |
| Number of Pins | 24 |
| Number of Resistors | 12 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 24-DRT |
| Package Name | 24-DRT |
| Power Per Element | 160 mW |
| Resistance | 22 Ohm |
| Size / Dimension Length | 0.665 in |
| Size / Dimension Width | 0.08 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 1 % |
