2-111506-5
ActiveTE Connectivity AMP Connectors

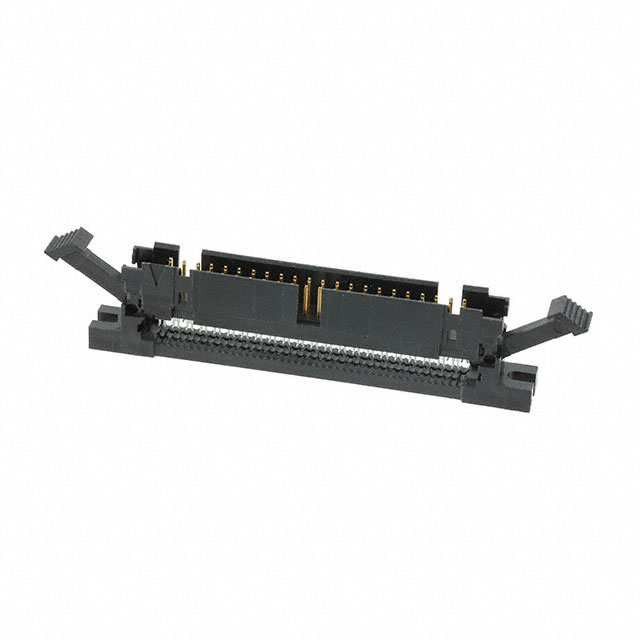

CONN PLUG 44P IDC 26-28AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-111506-5
ActiveTE Connectivity AMP Connectors
CONN PLUG 44P IDC 26-28AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-111506-5 | 111506 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Plug | Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Latch Lock/Eject Hooks | Latch Lock/Eject Hooks |
| Features | Feed Through, Strain Relief | Feed Through, Strain Relief |
| Number of Positions | 44 | 24 - 44 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Row Spacing | 2.54 mm | 2.54 mm |
| Row Spacing [x] | 0.1 in | 0.1 in |
| Wire Type | Ribbon Cable | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 240 | $ 10.89 | |
111506 Series
CONN PLUG 24P IDC 26-28AWG GOLD
| Part | Wire Type | Number of Positions | Contact Type | Cable Termination | Features | Color | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Fastening Type | Row Spacing [x] | Row Spacing | Pitch [x] | Pitch [x] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-111506-0 | Ribbon Cable | 24 | Male Pin | IDC | Feed Through, Strain Relief | Black | 2 | 0.76 Ám | 30 Áin | Plug | Latch Lock/Eject Hooks | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Gold |
TE Connectivity AMP Connectors 2-111506-5 | Ribbon Cable | 44 | Male Pin | IDC | Feed Through, Strain Relief | Black | 2 | 0.76 Ám | 30 Áin | Plug | Latch Lock/Eject Hooks | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Gold |
TE Connectivity AMP Connectors 2-111506-4 | Ribbon Cable | 40 | Male Pin | IDC | Feed Through, Strain Relief | Black | 2 | 0.76 Ám | 30 Áin | Plug | Latch Lock/Eject Hooks | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Gold |
Description
General part information
111506 Series
44 Position Rectangular Plug Connector IDC Gold 26-28 AWG
