Description
General part information

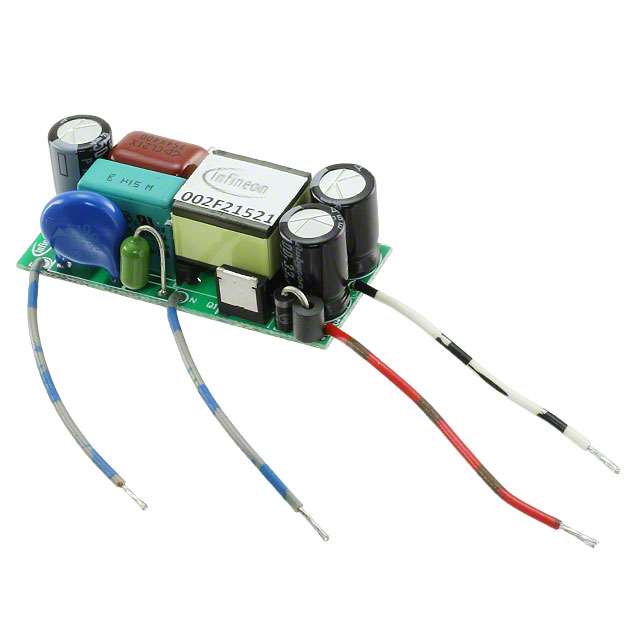

EVALLEDICL8201F2TOBO1
ICL8201, IPS65R1K5CE CoolMOS™ 1 Non-Isolated Output LED Driver Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | EVALLEDICL8201F2TOBO1 |
|---|---|
| Contents | Board |
| Current - Output / Channel | 270 mA |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Total Output Count | 1 |
| Utilized IC / Part | IPS65R1K5CE, ICL8201 |
| Voltage - Input (AC) Maximum | 277 VAC |
| Voltage - Input (AC) Minimum | 170 V |
| Voltage - Output (Max) | 75 V |
| Voltage - Output (Min) | 55 V |
