N518-02M
ActiveEaton Tripp Lite

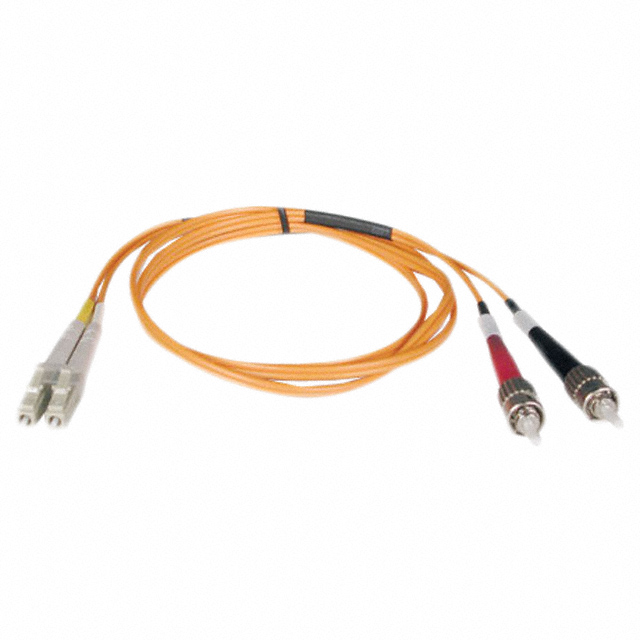

NETWORK CABLE, LC DUPLEX TO ST DUPLEX, 2 M, 6 FT, ORANGE
N518-02M
ActiveEaton Tripp Lite
NETWORK CABLE, LC DUPLEX TO ST DUPLEX, 2 M, 6 FT, ORANGE
Description
General part information
N518-02M
Cable Fiber Optic LC Duplex To ST (2) 50/125 6.6' (2.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | N518-02M |
|---|---|
| 1st Connector | LC Duplex |
| 2nd Connector | ST |
| 2nd Connector Count | 2 pcs |
| Cable Type | Twin Zip |
| Color - Cable | Orange |
| Color - Connectors | Beige, Black |
| Features | Low Smoke, Zipcord |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 50 µm |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 6.6 ft |
| Ratings | FDDI, OFNR |
| Type | Multimode, Duplex, OM3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
