184150-1
UnknownTE Connectivity AMP Connectors
CONN RING CIRC 2AWG #10 CRIMP
184150-1
UnknownTE Connectivity AMP Connectors
CONN RING CIRC 2AWG #10 CRIMP
Description
General part information
184150-1

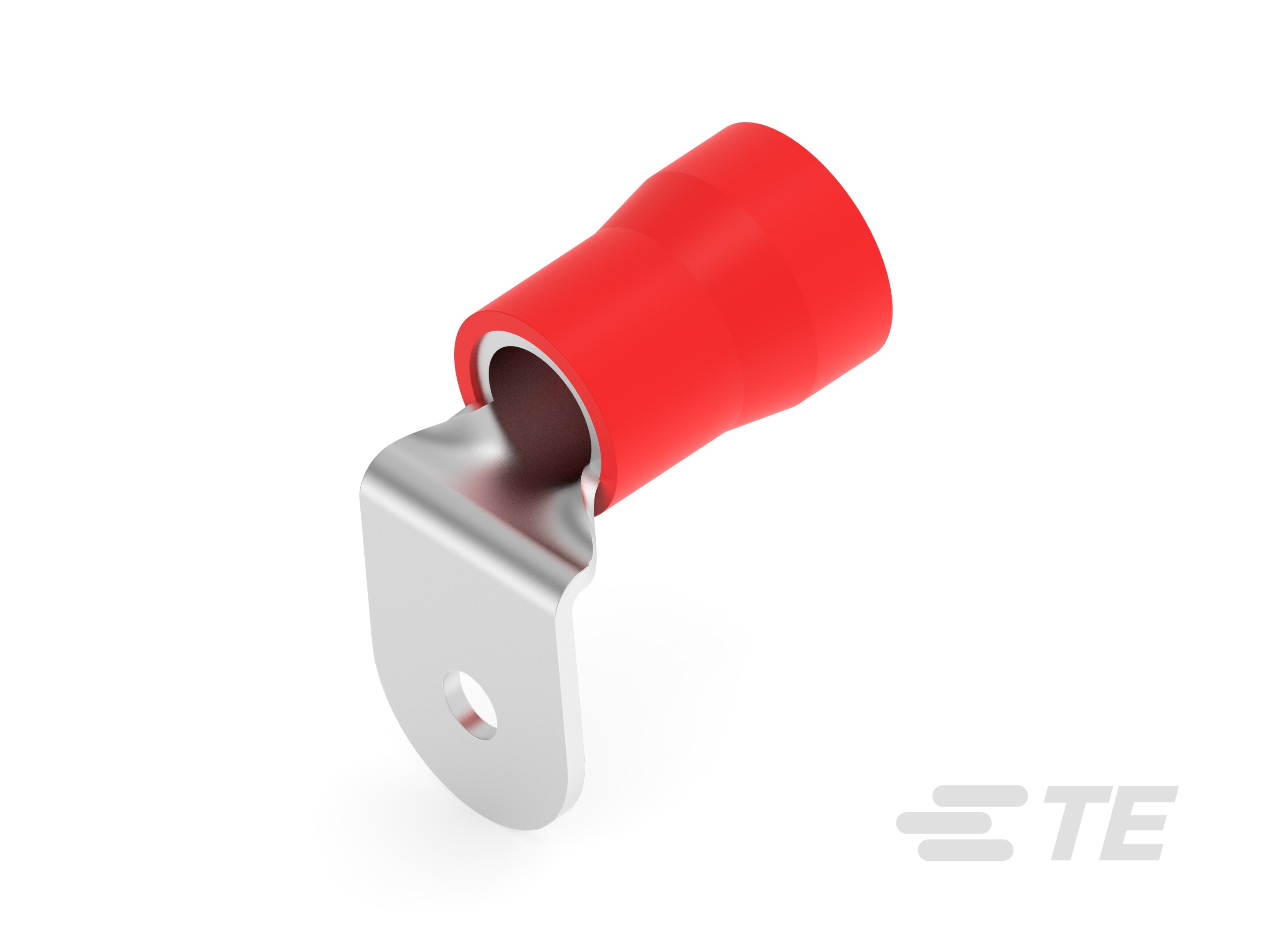

Closed Ring Tongue Terminal, 2 AWG, #10 Stud, 10 mm / 5 mm [.197 in] Stud Diameter, Closed Barrel, Right Angle, Tin Plating, PLASTI-GRIP
Technical Specifications
Parameters and characteristics for this part
| Specification | 184150-1 |
|---|---|
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.057 in |
| Width - Outer Edges | 0.711 in |
| Wire Gauge | 2 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
