Description
General part information
ROB-24053

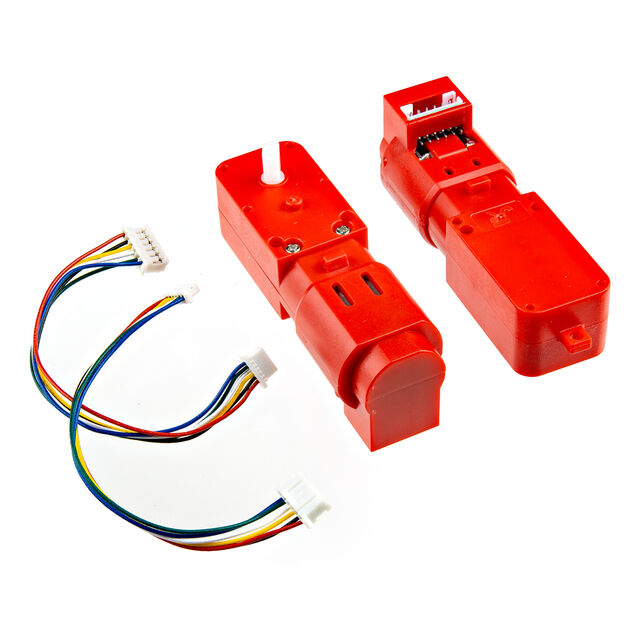

Continuous Rotation DC Motor Servomotor, RC (Hobby) 140 RPM Incremental 4.5 ~ 9VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | ROB-24053 |
|---|---|
| Encoder Type | Incremental |
| Function | RC (Hobby), Servomotor |
| Gear Reduction Ratio | 48 |
| Motor Type | Continuous Rotation |
| RPM | 140 RPM |
| Size / Dimension Length | 0.882 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.738 in |
| Termination Style | Connector |
| Type | DC Motor |
| Voltage - Rated (Max) | 9 VDC |
| Voltage - Rated (Min) | 4.5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
