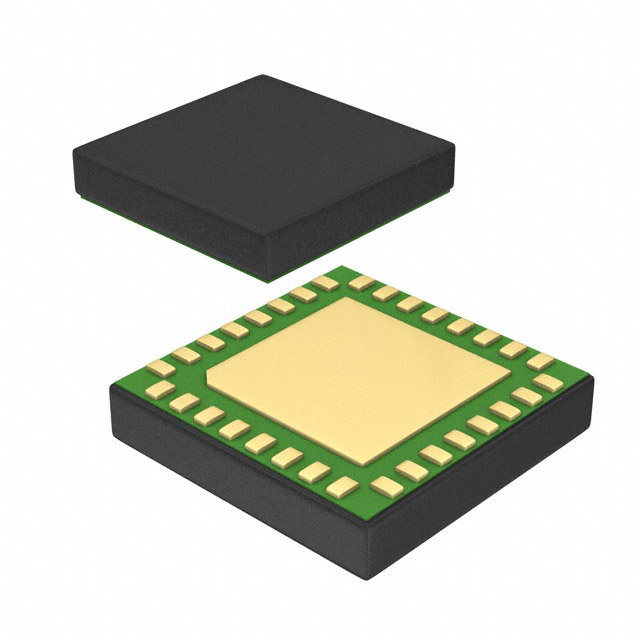

PE42540LGBC-Z
RF Switch IC ATE, ISM, PHS, UMTS, WLL SP4T 8 GHz 50Ohm 32-LGA (5x5)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE42540LGBC-Z |
|---|---|
| Circuit | SP4T |
| Features | DC Blocked |
| Frequency Range (Max) | 8 GHz |
| Frequency Range (Min) | 10 Hz |
| IIP3 | 58 dBm |
| Impedance | 50 Ohm |
| Insertion Loss | 1.2 dB |
| Isolation | 31 dB |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| P1dB | 33 dBm |
| Package / Case | 32-TFQFN Exposed Pad |
| Package Length | 5 mm |
| Package Name | 32-LGA |
| Package Width | 5 mm |
| RF Type | ISM, WLL, UMTS, PHS, ATE |
| Test Frequency | 8 GHz |
| Topology | Absorptive |
| Voltage - Supply (Maximum) | 3.55 V |
| Voltage - Supply (Minimum) | 3 V |
