2391517-1
ActiveTE Connectivity AMP Connectors

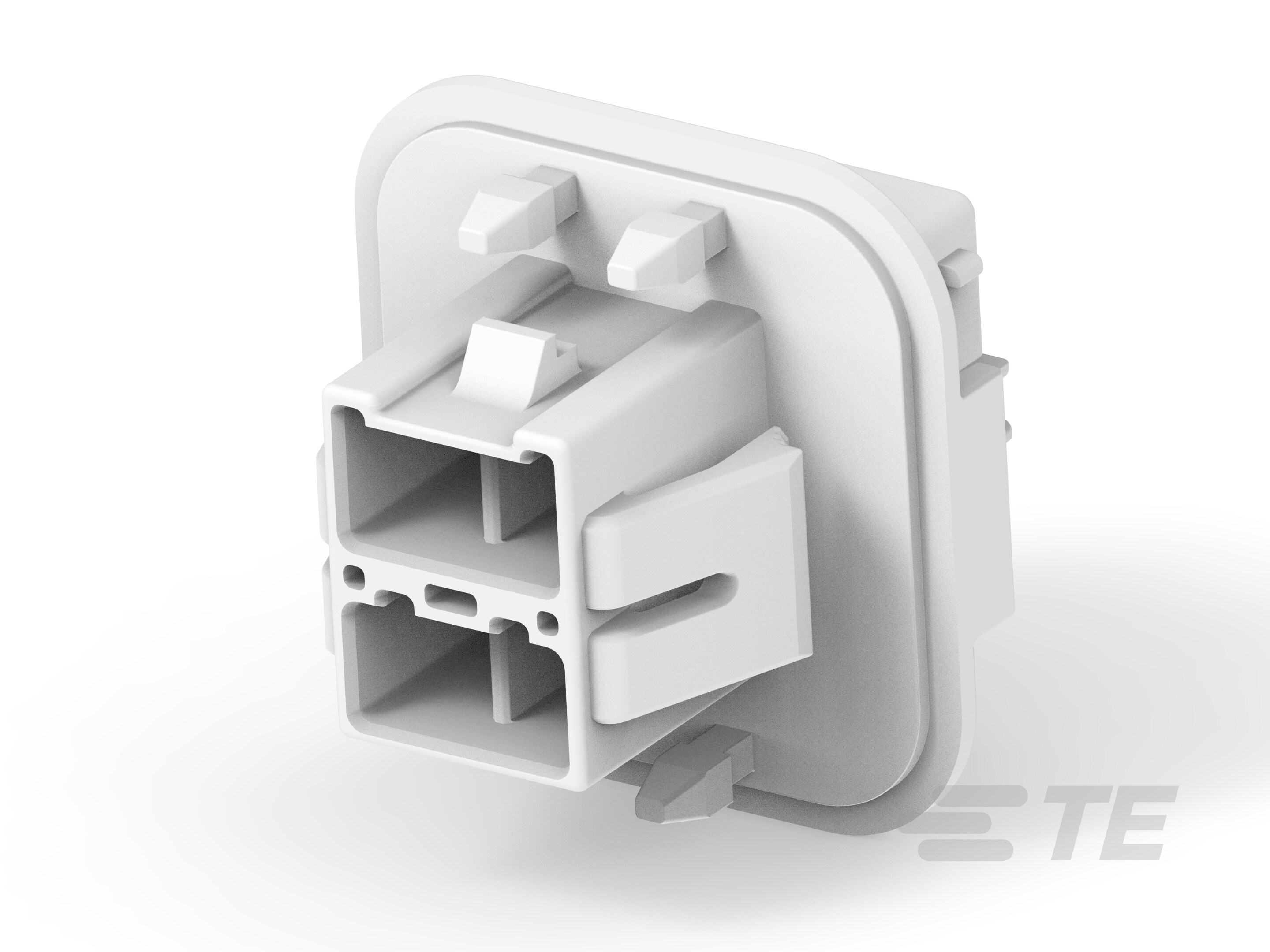

POWER DOUBLE LOCK CAP HOUSING, MULTI 4P
2391517-1
ActiveTE Connectivity AMP Connectors
POWER DOUBLE LOCK CAP HOUSING, MULTI 4P
Description
General part information
2391517-1
4 Position, Cap, Housing, Crimp, Wire-to-Panel, Pre-Tin, UL 94V-0, 5 mm [.197 in] Centerline, 2 Row, 250 VAC, Sealable, Wire & Cable, Power
Technical Specifications
Parameters and characteristics for this part
| Specification | 2391517-1 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Locking Ramp |
| Features | Glow Wire Compliant |
| Insulation Material | Thermoplastic |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.197 in |
| Row Spacing | 0.197 in |
