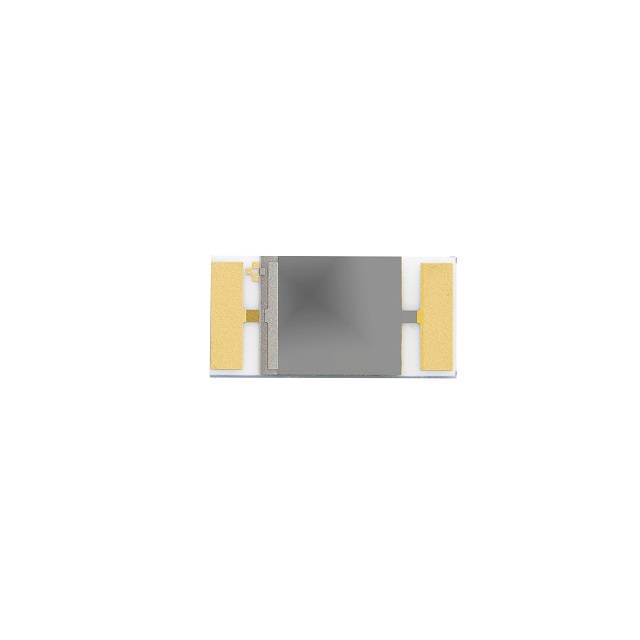

P14 FEMTOCAP-G_5
ActiveInnovative Sensor Technology, USA Division
FOR AUTOMOTIVE AND WHITE GOOD AP
P14 FEMTOCAP-G_5
ActiveInnovative Sensor Technology, USA Division
FOR AUTOMOTIVE AND WHITE GOOD AP
Description
General part information
P14 FEMTOCAP-G_5
Humidity 0 ~ 100% RH Capacitance 3 s Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | P14 FEMTOCAP-G_5 |
|---|---|
| Humidity Range (Maximum) | 100 % RH |
| Humidity Range (Minimum) | 0 % RH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -50 °C |
| Output Capacitance | 180 pF |
| Output Type | Capacitance |
| Package / Case | No Lead, 2-SMD |
| Package Name | 2-SMD |
| Response Time | 3 s |
| Sensitivity | 300 fF/%RH |
| Sensor Type | Humidity |
| Voltage - Supply | 12 VDC |
