70-220.5S
ActiveEAO

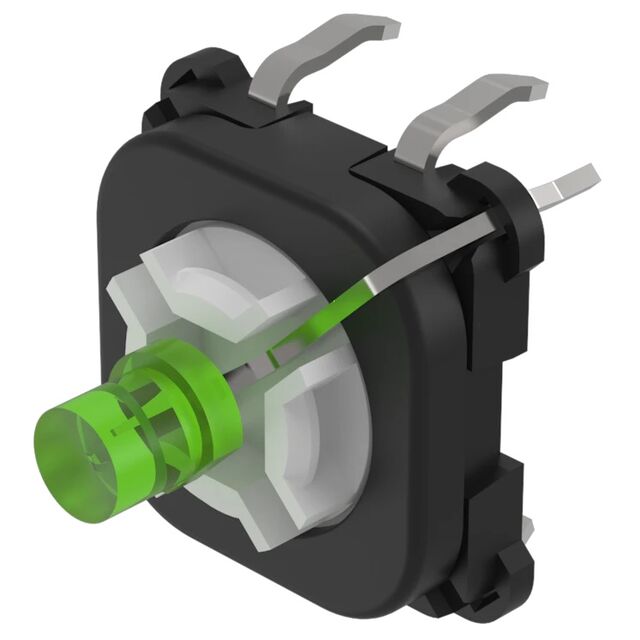

SWITCHING ELEMENT WITH ILLUMINATION SINGLE CHIP LED GREEN, 3.2VDC/20MA, 1S AU
Deep-Dive with AI
Search across all available documentation for this part.
70-220.5S
ActiveEAO
SWITCHING ELEMENT WITH ILLUMINATION SINGLE CHIP LED GREEN, 3.2VDC/20MA, 1S AU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 70-220.5S | 70-220 Series |
|---|---|---|
| - | - | |
| Actuator Type | Plunger for Cap | Plunger for Cap |
| Circuit | SPST-NO | SPST-NO |
| Current Rating (Amps) | 100 mA | 100 mA |
| Illumination Type, Color | LED, Green | Red, LED, Green |
| Illumination Voltage (Nominal) | 3.2 VDC | 2 - 3.2 VDC |
| Mounting Type | Through Hole | Through Hole |
| Switch Function | Off-Mom | Off-Mom |
| Termination Style | PC Pin | PC Pin |
| Type | Illuminated, Standard | Illuminated, Standard |
| Voltage Rating - AC | 42 V | 42 V |
| Voltage Rating - DC | 42 V | 42 V |
70-220 Series
SWITCHING ELEMENT WITH ILLUMINATION SINGLE CHIP LED RED, 2,0VDC/20MA, 1S AU
| Part | Mounting Type | Actuator Type | Current Rating (Amps) | Circuit | Type | Switch Function | Voltage Rating - DC | Illumination Type, Color | Illumination Voltage (Nominal) | Voltage Rating - AC | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 70-220.2S | Through Hole | Plunger for Cap | 100 mA | SPST-NO | Illuminated, Standard | Off-Mom | 42 V | LED, Red | 2 VDC | 42 V | PC Pin |
EAO 70-220.5S | Through Hole | Plunger for Cap | 100 mA | SPST-NO | Illuminated, Standard | Off-Mom | 42 V | Green, LED | 3.2 VDC | 42 V | PC Pin |
EAO 70-220.3 | |||||||||||
EAO 70-220.4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
70-220 Series
Pushbutton Switch SPST-NO Standard, Illuminated Through Hole
