9001KP38LYY9
ActiveSCHNEIDER ELECTRIC

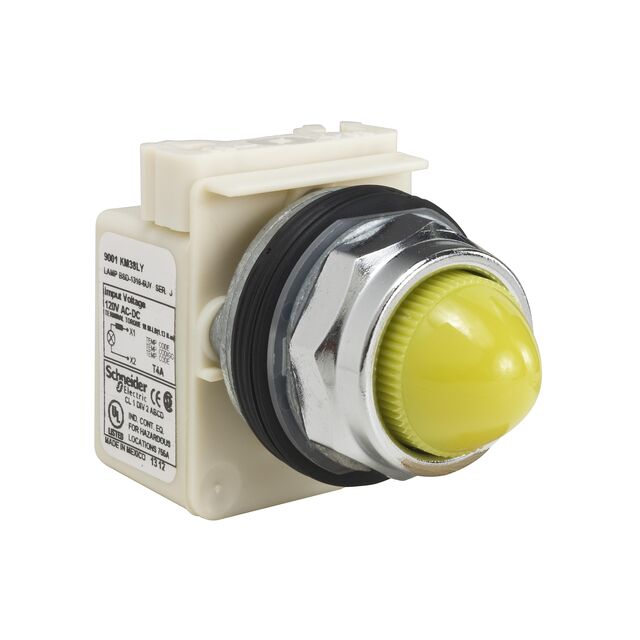

LED PANEL MOUNT INDICATOR, ROUND, SCREW CLAMP TERMINALS, YELLOW, 120 V, 30 MM
9001KP38LYY9
ActiveSCHNEIDER ELECTRIC
LED PANEL MOUNT INDICATOR, ROUND, SCREW CLAMP TERMINALS, YELLOW, 120 V, 30 MM
Description
General part information
9001KP38LYY9
LED Panel Indicator Yellow 120V Screw Terminal
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001KP38LYY9 |
|---|---|
| Ingress Protection | 13, 12, 4, 2, 6, 1, 3, NEMA 3R |
| Lamp Color | Yellow |
| Lens Color | Yellow |
| Lens Diameter | 30 mm |
| Lens Style | Round, Domed Top |
| Panel Cutout Dimension | 1.18 " |
| Panel Cutout Shape | Round |
| Ratings | AC, DC |
| Termination Style | Screw Terminal |
| Type | LED |
| Voltage | 120 V |
