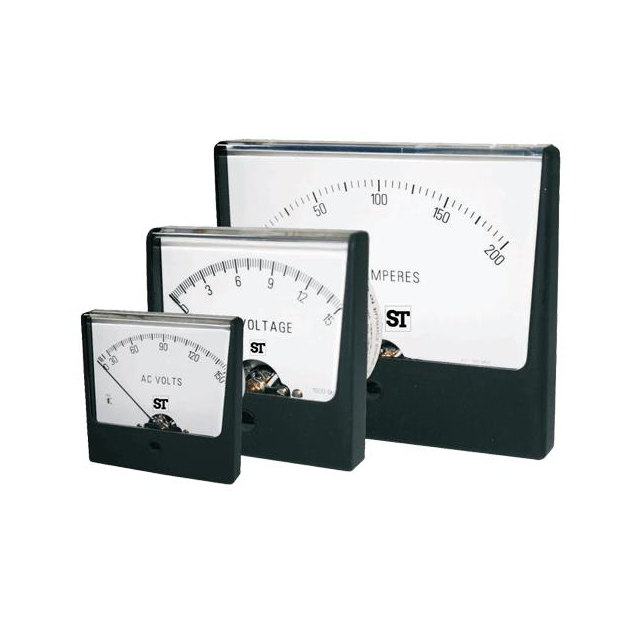

EQ4V-I

Active

Sifam Tinsley Instrumentation Inc

AMMETER 100MA-50A ANALOG PNL MT

Search across all available documentation for this part.

Active

Sifam Tinsley Instrumentation Inc

AMMETER 100MA-50A ANALOG PNL MT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EQ4V-I	- Series

Display Characters - Height	0.24 "	0.24 "
Display Characters - Height	6.1 mm	6.1 mm
Display Type	Analog - Black Characters	Analog - Black Characters
Features	Scaling Meter	Smartlook Analog Panel Meters - ANSI APM, Scaling Meter
Ingress Protection	IP42	IP42, IP54 - Dust Protected, Water Resistant
Measuring Range [Max]	50 A	30 - 600 VAC
Measuring Range [Min]	0.1 A	0.1 - 6 VAC
Measuring Type	Current	Voltage, Current
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Output Type	Analog	Analog
Panel Cutout Dimensions [diameter]	69.9 mm	69.9 mm
Termination Style	Stud	Stud
Type	Ammeter	Voltmeter, Ammeter
Weight	103.87 g	100.24 - 103.87 g
Weight	0.229 lb	0.221 - 0.229 lb

VOLTMETER 6-600VAC ANALOG PNL MT

Part	Display Type	Measuring Range [Max]	Measuring Range [Min]	Ingress Protection	Output Type	Type	Termination Style	Measuring Type	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Weight	Weight	Features	Display Characters - Height	Display Characters - Height
Sifam Tinsley Instrumentation Inc EQ2A-V	Analog - Black Characters	600 VAC	6 VAC	IP42	Analog	Voltmeter	Stud	Voltage	40 °C
Sifam Tinsley Instrumentation Inc EQ3L-V	Analog - Black Characters	600 VAC	6 VAC	IP54 - Dust Protected, Water Resistant	Analog	Voltmeter	Stud	Voltage	40 °C
Sifam Tinsley Instrumentation Inc EQ3L-I	Analog - Black Characters	30 A	0.1 A	IP54 - Dust Protected, Water Resistant	Analog	Ammeter	Stud	Current	40 °C	69.9 mm	100.24 g	0.221 lb	Smartlook Analog Panel Meters - ANSI APM	0.24 "	6.1 mm
Sifam Tinsley Instrumentation Inc EQ2A-I	Analog - Black Characters	60 A	0.1 A	IP42	Analog	Ammeter	Stud	Current	40 °C
Sifam Tinsley Instrumentation Inc EQ4V-V	Analog - Black Characters	600 VAC	6 VAC	IP42	Analog	Voltmeter	Stud	Voltage	40 °C
Sifam Tinsley Instrumentation Inc EQ2C-V	Analog - Black Characters	600 VAC	6 VAC		Analog	Voltmeter	Stud	Voltage	40 °C
Sifam Tinsley Instrumentation Inc EQ4V-I	Analog - Black Characters	50 A	0.1 A	IP42	Analog	Ammeter	Stud	Current	40 °C	69.9 mm	103.87 g	0.229 lb	Scaling Meter	0.24 "	6.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	1	$ 45.00

General part information

Ammeter Analog - Black Characters Display Panel Mount
