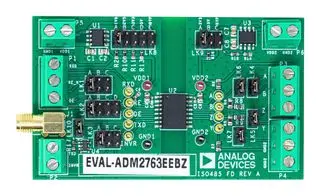

EVAL-ADM2763EEBZ is an evaluation board evaluating the ADM2763E 500Kbps, 5.7KV RMS, signal isolated, full duplex RS-485 transceiver with ±15KV IEC ESD. The EVAL-ADM2763EEBZ come with options for the evaluation of the ADM2763E in an individual system. Digital and RS-485 bus signals are easily accessible via the screw terminal blocks on the evaluation board. Each digital input can be configured via the on-board jumper options. Two on-board ADP7104 low dropout (LDO) regulators accept an input voltage of up to 20V and output a range of selectable supply voltages to the VDD1 pin and VDD2 pin, configurable via jumper options. The LDO regulators can be bypassed to power the ADM2763E VDD1 supply pins and VDD2 supply pins directly from an external power supply.
