B78108S1222K000
LTBEPCOS - TDK Electronics
FIXED IND 2.2UH 1A 250 MOHM TH
B78108S1222K000
LTBEPCOS - TDK Electronics
FIXED IND 2.2UH 1A 250 MOHM TH
Description
General part information
B78108S1222K000

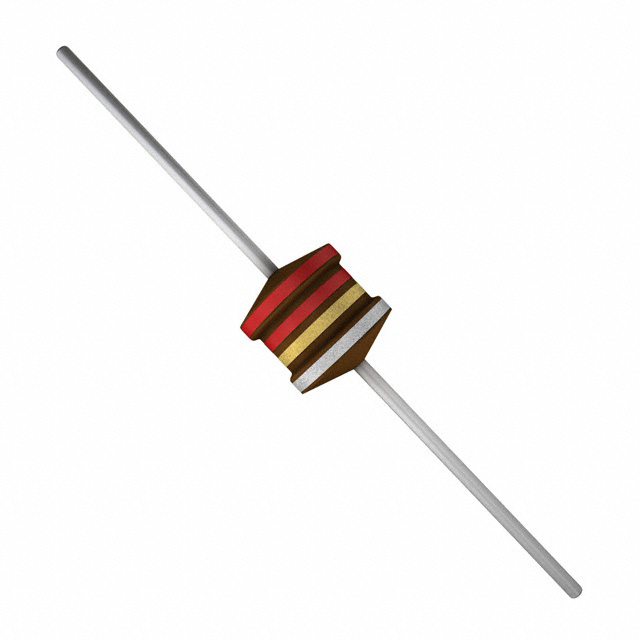

2.2 µH Unshielded Drum Core, Wirewound Inductor 1 A 250mOhm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B78108S1222K000 |
|---|---|
| Current Rating | 1 A |
| DC Resistance (DCR) (Max) | 250 mOhm |
| Frequency - Self Resonant | 140 MHz |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 7.96 MHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Q | 55 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.157 in |
| Size / Dimension Length | 0.362 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
