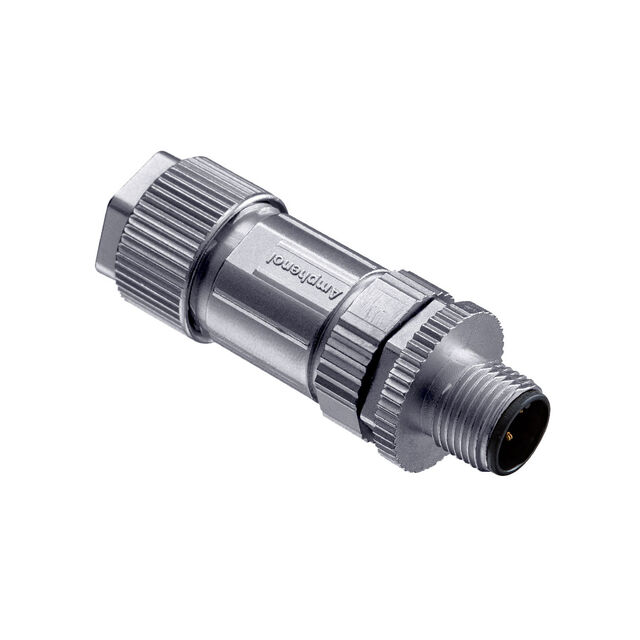

HDM12A-05BMMB-SL7001
ActiveMcGill Microwave Systems
M SERIES, M12, A CODE, HIGH TEMP
HDM12A-05BMMB-SL7001
ActiveMcGill Microwave Systems
M SERIES, M12, A CODE, HIGH TEMP
Description
General part information
HDM12A-05BMMB-SL7001
5 Position Circular Connector Plug, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | HDM12A-05BMMB-SL7001 |
|---|---|
| Cable Opening (Max) | 0.295 in |
| Cable Opening (Min) | 0.157 in |
| Color | Black |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Features | Coupling Nut, Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 5 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Primary Material | Plastic |
| Shell Material | Thermoplastic |
| Shell Size - Insert | M12-5 |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating | 60 V |
