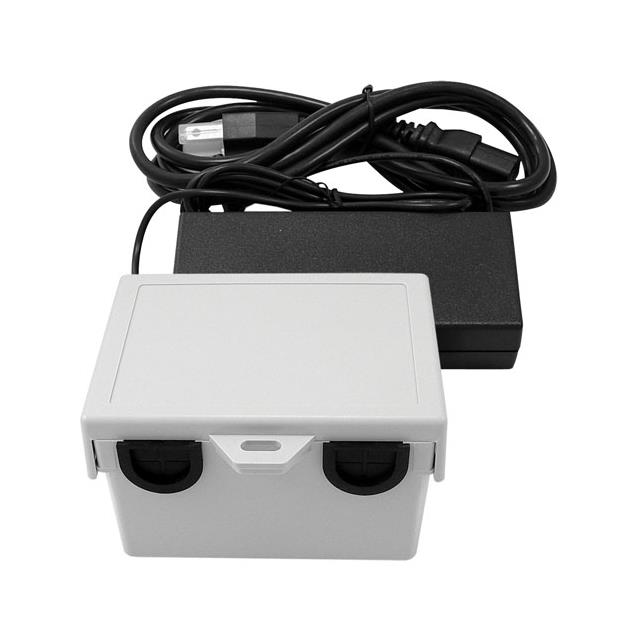

BT-CAT6P1HPW70W
ActivePasternack
INJDC PWR HP CAT6 48 VDC KIT
BT-CAT6P1HPW70W
ActivePasternack
INJDC PWR HP CAT6 48 VDC KIT
Description
General part information
BT-CAT6P1HPW70W
70V Power Over Ethernet (POE) 1 Port Midspan Injector Data Rate
Technical Specifications
Parameters and characteristics for this part
| Specification | BT-CAT6P1HPW70W |
|---|---|
| Compliance | IEEE802.3at, IEEE802.3af |
| Current - Output | 686 mA |
| Input Connector | RJ45 (Data, Power), Receptacle (Power) |
| Input Connector Size | 2.5 mm |
| Mounting Type | Chassis Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Output Connector | Power), RJ45 (Data |
| Power (Watts) - Per Port | 48 W |
| Size / Dimension Height | 2.83 in |
| Size / Dimension Length | 4.77 in |
| Size / Dimension Width | 3.56 in |
| Type | Midspan Injector |
| Voltage - Output | 70 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
