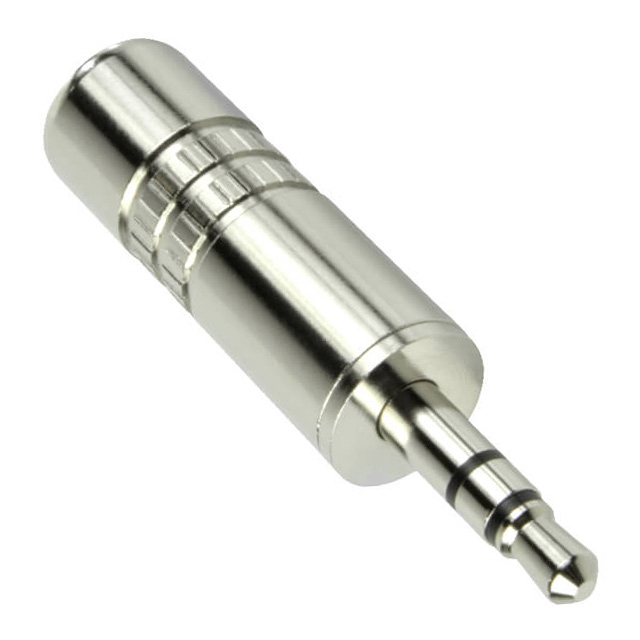

SP-3530B
ActiveSame Sky (Formerly CUI Devices)
AUDIO PLUG, 3.5 MM, STRAIGHT, 3
SP-3530B
ActiveSame Sky (Formerly CUI Devices)
AUDIO PLUG, 3.5 MM, STRAIGHT, 3
Description
General part information
SP-3530B
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | SP-3530B |
|---|---|
| Actual Diameter | 0.126 in |
| Connector Type | Phone Plug |
| Features | Cover |
| Gender | Male |
| Industry Recognized Mating Diameter (Headphone - Mini Plug) | 3.5 mm |
| Industry Recognized Mating Diameter (Headphone Options) | Mini Plug |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 3 Conductors |
| Number of Contacts | 3 Contacts |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Shielding | Unshielded |
| Signal Lines | 3 Conductor, TRS, Stereo |
| Termination | Crimp |
