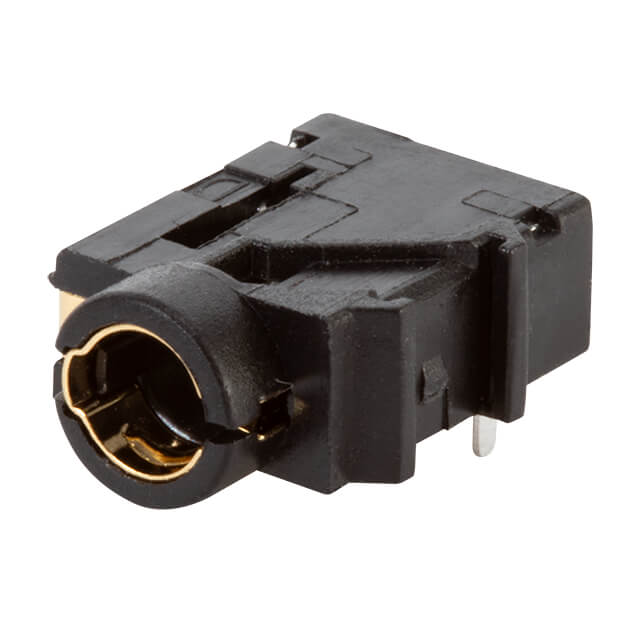

SJ3-35093BG
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | SJ3-35093BG |
|---|---|
| Actual Diameter | 0.142 in |
| Body Color | Black |
| Connector Type | Phone Jack |
| Contact Material | Brass, Phosphor Bronze |
| Contact Material - Plating | Gold, Silver |
| Current Rating | 1 A |
| Features | Board Guide |
| Gender | Female |
| Housing Material | PBT, Polybutylene Terephthalate |
| Industry Recognized Mating Diameter (Headphone - Mini Plug) | 3.5 mm |
| Industry Recognized Mating Diameter (Headphone Options) | Mini Plug |
| Internal Switch Count | 2 count |
| Mating Length/Depth | 0.551 in |
| Mounting Type | Through Hole, Right Angle |
| Number of Conductors | 4 Conductors |
| Number of Contacts | 6 Contacts |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Shielding | Unshielded |
| Signal Lines | 4 Conductor, TRRS, Stereo |
| Termination | Solder |
| Voltage - Rated | 12 VAC |
