Description
General part information

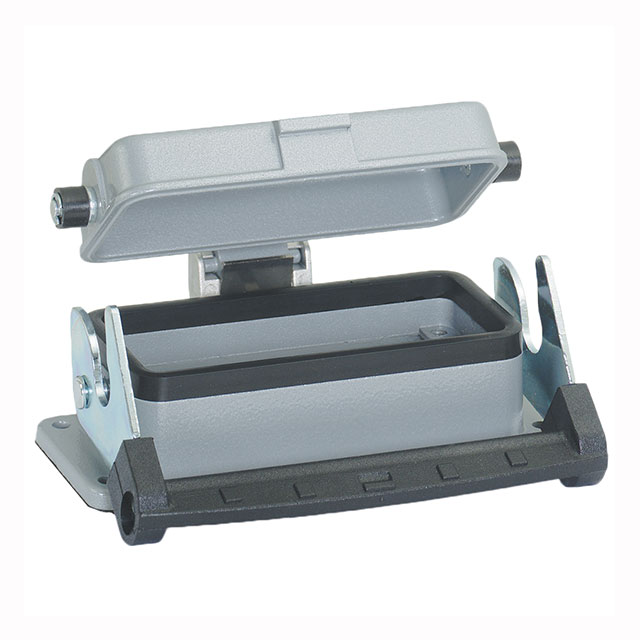

10073900
Base - Panel Mount Connector Bottom Entry HB16 IP65 - Dust Tight, Water Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | 10073900 |
|---|---|
| Connector Type | Base - Panel Mount |
| Features | Cover |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum Alloy |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | HB16 |
| Size / Dimension Height | 1.094 in |
| Size / Dimension Length | 4.449 in |
| Size / Dimension Width | 1.693 in |
| Style | Bottom Entry |
