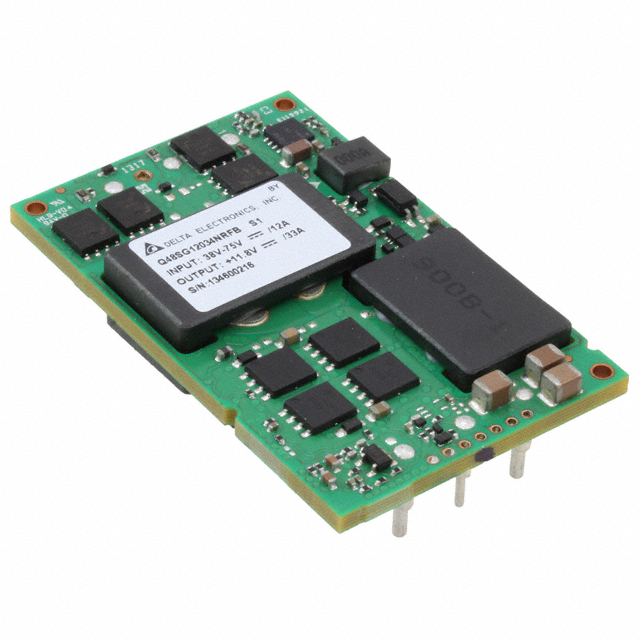

Q48SG12034NRFB
Delta Electronics
DC DC CONVERTER 11.8V 400W
Deep-Dive with AI
Search across all available documentation for this part.
Q48SG12034NRFB
Delta Electronics
DC DC CONVERTER 11.8V 400W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q48SG12034NRFB |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 34 A |
| Efficiency | 96 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 13-DIP Module, 1/4 Brick |
| Power (Watts) | 400 W |
| Size / Dimension [x] | 58.4 mm |
| Size / Dimension [x] | 2.3 in |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [z] | 11.2 mm |
| Size / Dimension [z] | 0.44 " |
| Type | Isolated Module, Digital |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 38 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 11.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 30 | $ 61.61 | |
Description
General part information
Q48SG Series
Isolated Module, Digital DC DC Converter 1 Output 11.8V 34A 38V - 75V Input
Documents
Technical documentation and resources
No documents available
