FMANKIT1031
ActiveFairview Microwave

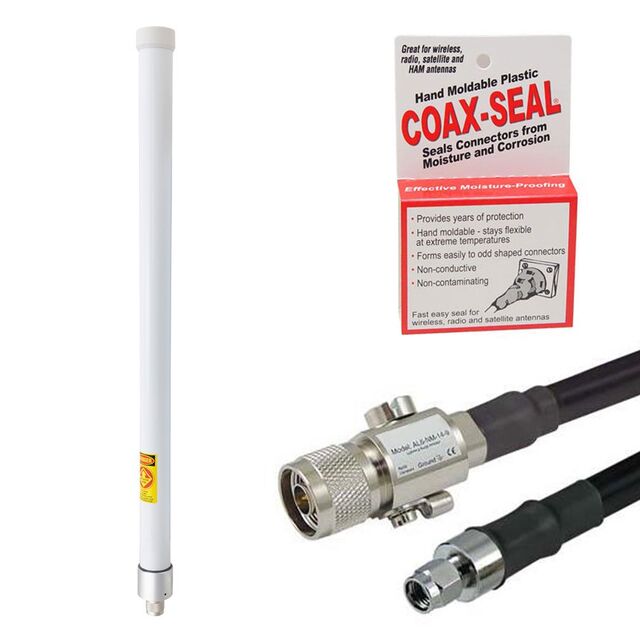

ANTENNA KIT 6 DBI 20 FT LOW LOSS
FMANKIT1031
ActiveFairview Microwave
ANTENNA KIT 6 DBI 20 FT LOW LOSS
Description
General part information
FMANKIT1031
RF ANTENNA IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M Whip, Straight N Type Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FMANKIT1031 |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | M2M, IoT, LPWAN, LoRa, LoRaWAN, ISM |
| Features | 6.09m, Cable |
| Frequency (Center/Band) | 850 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 876 MHz |
| Frequency Range (Min) | 824 MHz |
| Gain | 6 dBi |
| Height (Max) | 22.2 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max | 100 VA |
| RF Family/Standard | General ISM |
| Termination | N Type Female |
| VSWR | 1.5 |
