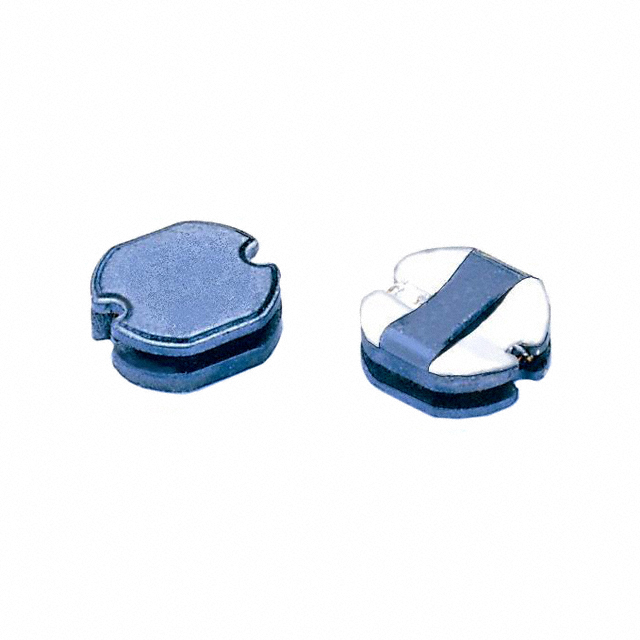

SC104-270
ActiveSignal Transformer
FIXED IND 27UH 2.05A 100MOHM SMD
SC104-270
ActiveSignal Transformer
FIXED IND 27UH 2.05A 100MOHM SMD
Description
General part information
SC104-270
27 µH Unshielded Inductor 2.05 A 100mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SC104-270 |
|---|---|
| Current - Saturation (Isat) | 1.44 A |
| Current Rating | 2.05 A |
| DC Resistance (DCR) (Max) | 100 mOhm |
| Height - Seated (Max) | 0.169 in |
| Inductance | 27 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.406 in |
| Size / Dimension Width | 0.366 in |
| Tolerance | 20 % |
