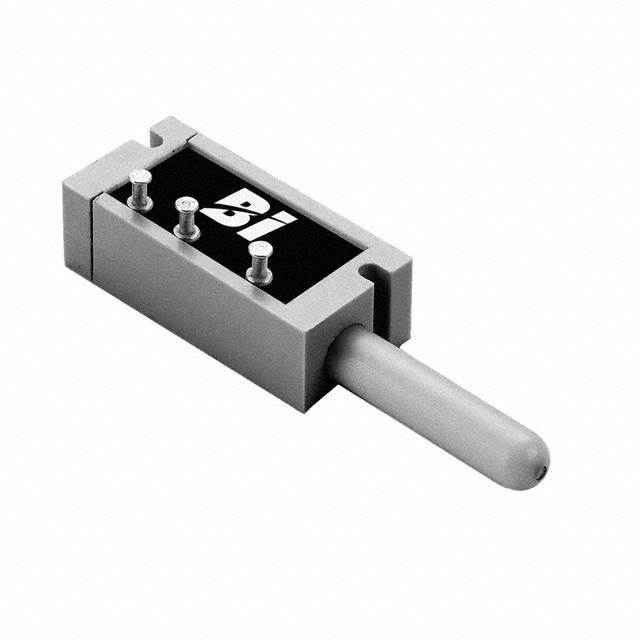

404R1KL1.0

Active

TT Electronics/BI

SENSOR LINEAR 12.7MM SLD TURRET

Search across all available documentation for this part.

Active

TT Electronics/BI

SENSOR LINEAR 12.7MM SLD TURRET

Technical Specifications

Parameters and characteristics commom to parts in this series

SENSOR LINEAR 12.7MM SLD TURRET

Part	Output	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	For Measuring	Linear Range [Max]	Linear Range [Max]	Resistance	Termination Style	Actuator Type	Technology	Mounting Type	Linearity	Resistance Tolerance
TT Electronics/BI 404R1KL1.0	Resistive	125 °C	-40 °C	Box with Solder Turrets	Linear Position	0.5 in	12.7 mm	1000 Ohms	Solder Turret	Round Shaft	Resistive	Chassis Mount	1 %	10%
TT Electronics/BI 404R50KL1.0	Resistive	125 °C	-40 °C	Box with Solder Turrets	Linear Position	0.5 in	12.7 mm		Solder Turret	Round Shaft	Resistive	Chassis Mount	1 %	10%
TT Electronics/BI 404R10KL.5	Resistive	125 °C	-40 °C	Box with Solder Turrets	Linear Position	0.5 in	12.7 mm		Solder Turret	Round Shaft	Resistive	Chassis Mount	0.5 %	10%

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Resistive Sensor Linear Position Round Shaft Solder Turret
