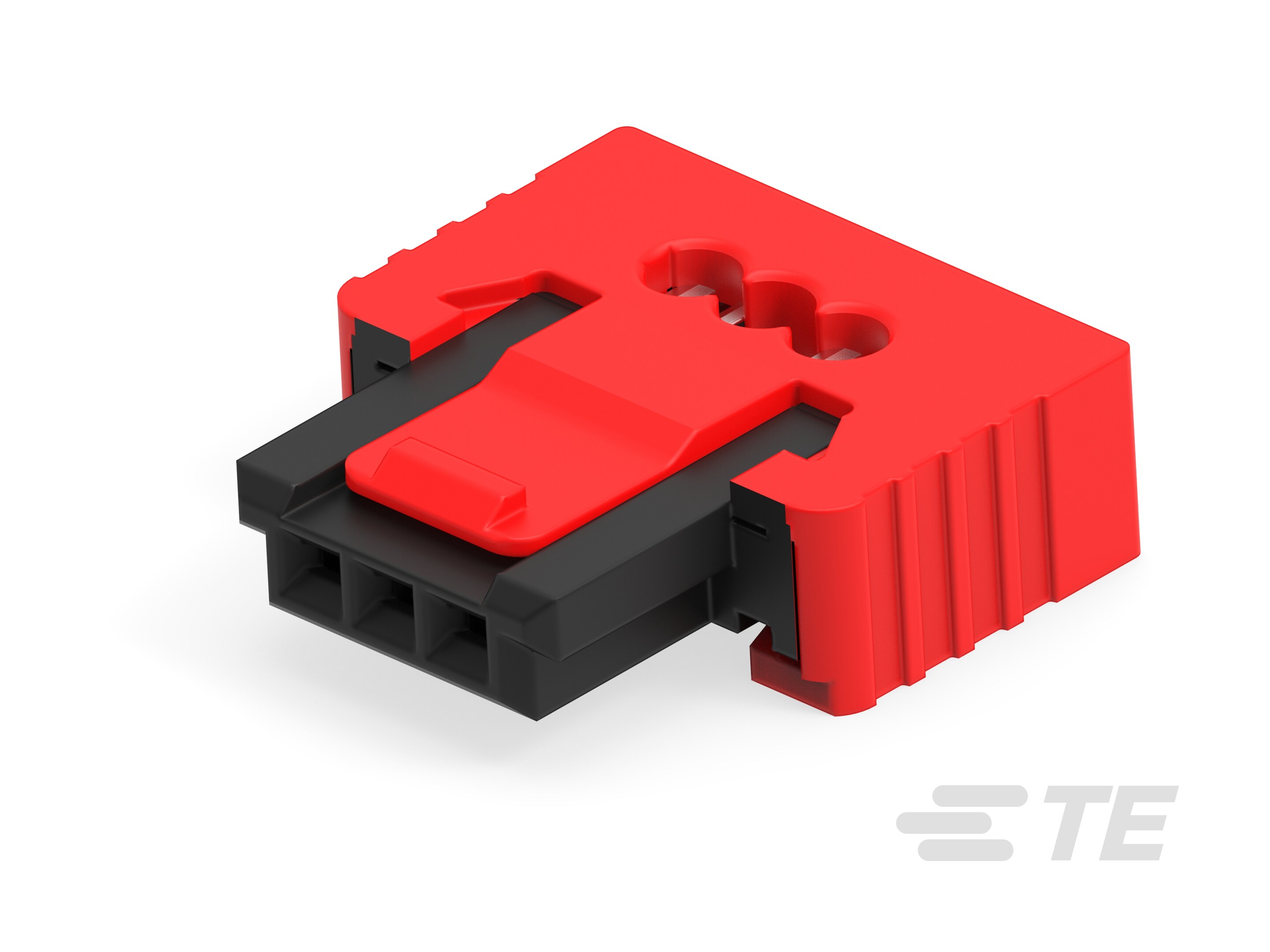

Specification	464224-E

Cable Termination	IDC
Connector Type	Receptacle
Contact Type	Female Socket
Fastening Type	Latch Lock
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Positions	3
Number of Rows	1
Pitch	0.05 in
Wire Gauge	22 AWG
Wire Type	Ribbon Cable, Discrete

ERNI MiniBridge Series

...

Part	Pitch - Mating	Contact Finish - Mating	Shrouding	Termination	Number of Positions	Number of Rows	Contact Finish - Post	Contact Material	Insulation Material	Contact Length - Mating	Contact Shape	Material Flammability Rating	Insulation Color	Number of Positions Loaded	Contact Type	Insulation Height	Style	Mounting Type	Current Rating (Per Contact)	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Connector Type	Features	Accessory Type	Material	Color	Shell Size - Insert	For Use With/Related Products	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Wire Type	Contact Finish	Pitch	Cable Termination	Wire Gauge
TE Connectivity AMP Connectors 474810-E	0.05 in	Gold	Shrouded - 4 Wall	Solder	6	1	Tin	Copper Alloy	Liquid Crystal Polymer (LCP)	0.087 in	Square	UL94 V-0	Black	All	Male Pin	0.137 in	Board Cable/Wire	Right Angle Surface Mount	5.4 A	150 °C	-55 °C	Latch Holder	Header	Board Guide Solder Retention
TE Connectivity AMP Connectors 284696-E	0.05 in	Gold	Shrouded - 4 Wall	Solder	3	1	Gold	Phosphor Bronze	Liquid Crystal Polymer (LCP)		Square	UL94 V-0	Black	All	Male Pin		Board Cable/Wire	Through Hole	5.4 A				Header
TE Connectivity AMP Connectors 474125-E	0.05 in	Gold	Shrouded - 4 Wall	Solder	2	1	Tin	Copper Alloy	Liquid Crystal Polymer (LCP)	0.087 in	Square	UL94 V-0	Black	All	Male Pin	0.207 in	Board Cable/Wire	Surface Mount	5.4 A	150 °C	-55 °C	Latch Holder	Header	Board Guide Pick and Place Solder Retention
TE Connectivity AMP Connectors 394905-E																									Nut	Steel	Silver	M10	Circular Connectors
TE Connectivity AMP Connectors 839015-E
TE Connectivity AMP Connectors 224393-E					2	1									Female Socket			Free Hanging (In-Line)				Locking Ramp	Receptacle				Black			26 AWG	24 AWG	Discrete Ribbon Cable	Gold	0.05 in	IDC
TE Connectivity AMP Connectors 394895-E					4	1									Female Socket			Free Hanging (In-Line) Right Angle				Latch Lock	Receptacle									Discrete Ribbon Cable		0.05 in	IDC	22 AWG
TE Connectivity AMP Connectors 384529-E					2	1									Female Socket			Free Hanging (In-Line) Right Angle				Latch Lock	Receptacle				Red					Discrete Ribbon Cable		0.05 in	IDC	22 AWG
TE Connectivity AMP Connectors 474143-E					4	1									Female Socket			Free Hanging (In-Line)				Latch Lock	Receptacle									Discrete Ribbon Cable		0.05 in	IDC	22 AWG
TE Connectivity AMP Connectors 839033-E
