2408732-1
ActiveTE Connectivity AMP Connectors

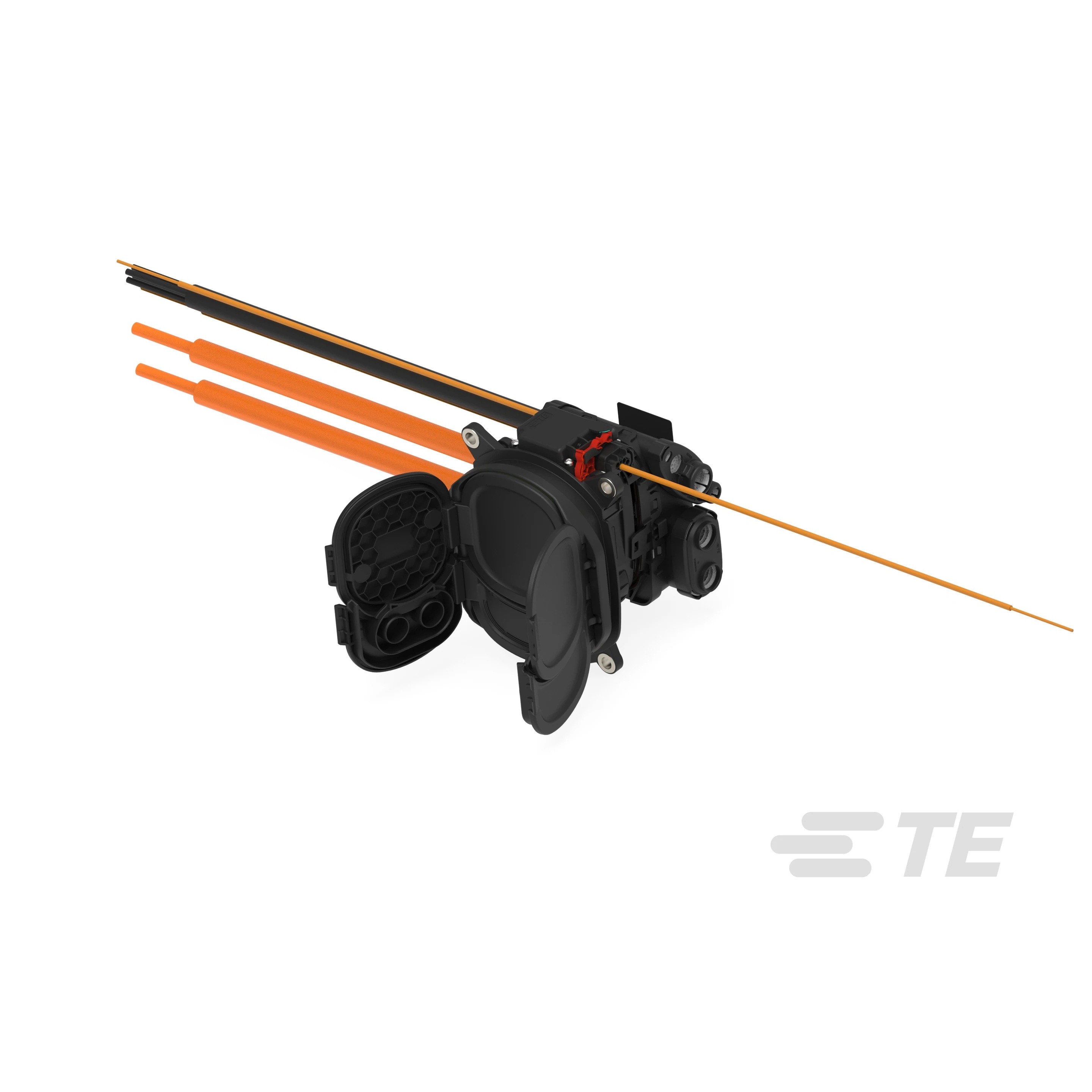

CI200, CCS 2 CABLE ASSEMBLY
2408732-1
ActiveTE Connectivity AMP Connectors
CI200, CCS 2 CABLE ASSEMBLY
Description
General part information
Charging Inlets Series
1000 VDC, 2 m [6.56 ft], -30 – 50 °C / -40 – 85 °C [-22 – 122 °F / -40 – 185 °F]
Technical Specifications
Parameters and characteristics for this part
| Specification | 2408732-1 |
|---|---|
| 1st Connector | 62196-2 (Type 2), 62196-3 (Type 2) |
| 2nd Connector | Cable |
| Conductor Types | Power, Signal |
| Current Rating Options | 200A, 32A |
| Length | 6.56 ft |
| Number of Conductors - Power | 7 |
| Number of Conductors - Signal | 2 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -40 °C |
| Shielding | Shielded |
| Style | Leads, Female Plug |
