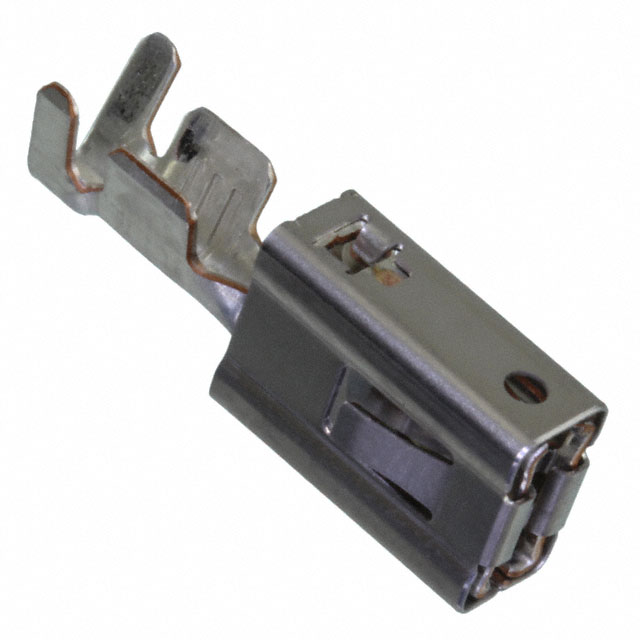

1241404-1
ActiveTE Connectivity AMP Connectors
CONTACT SKT CRIMP ST CABLE MOUNT 13-17AWG REEL AUTOMOTIVE
1241404-1
ActiveTE Connectivity AMP Connectors
CONTACT SKT CRIMP ST CABLE MOUNT 13-17AWG REEL AUTOMOTIVE
Description
General part information
AMP MCP 6.3/4.8K Series
Receptacle Terminal, 17 – 13 AWG, 1 – 2.5 mm² Wire, 4.8 mm / 6.3 mm [.189 in / .25 in] Tab Width, Tin (Sn), Unsealed, AMP MCP 6.3/4.8K
Technical Specifications
Parameters and characteristics for this part
| Specification | 1241404-1 |
|---|---|
| Contact Finish | Tin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge (AWG) (Max) | 17 AWG |
| Wire Gauge (AWG) (Min) | 13 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
1241404-1 | Datasheet
Product Change Notice EN
Drawing EN
Empfehlung min. Leitungslaenge bei Ultraschall-Schweissknoten / RECOMMENDATION MIN. WIRE LENGTH FOR ULTRASONIS WELD SPLICES
Allgemeine Crimpspezifikation / GENERAL CRIMP SPEC.
ENG_CD_1241438_B.pdf
AMP MCP 6.3/4.8K
AMP MCP6.3/4.8K Contact System / AMP MCP6.3/4.8K Kontaktsystem
WIRE DRESS 7POS VW; ASSY, 7POSN MCP MQS REC; MQS 1.5 SOCKET CONTACT; AMP MCP 6.3/4.8K FLAT CONTACT
Datasheet
WIRE DRESS 7POS _VW/ ASSY, 7POSN, MCP/MQS, REC
